74HC595应用实例-基于AT89S52+74HC595的电子万年历

文章编号：
100817215037
 文章分类： 单片机 ＞ 51系列
点 击：
...
关 键 词： 74HC595,万年历
文章来源：
www.ourdev.cn，作者：b57203493
摘 要：

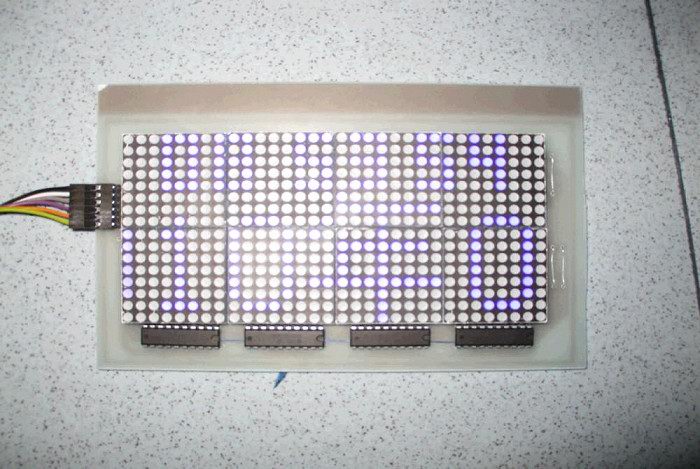

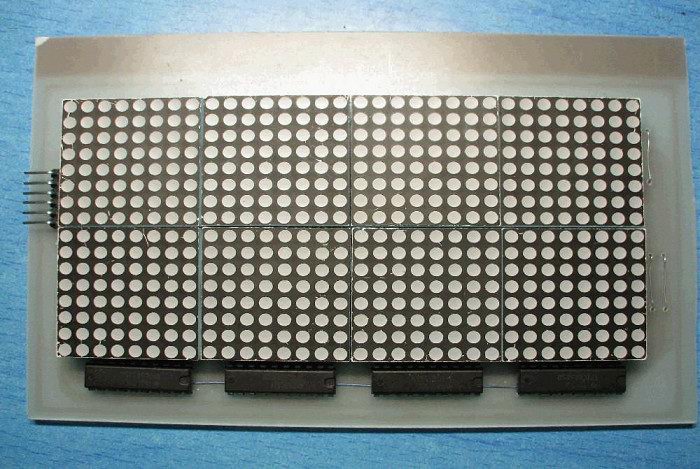

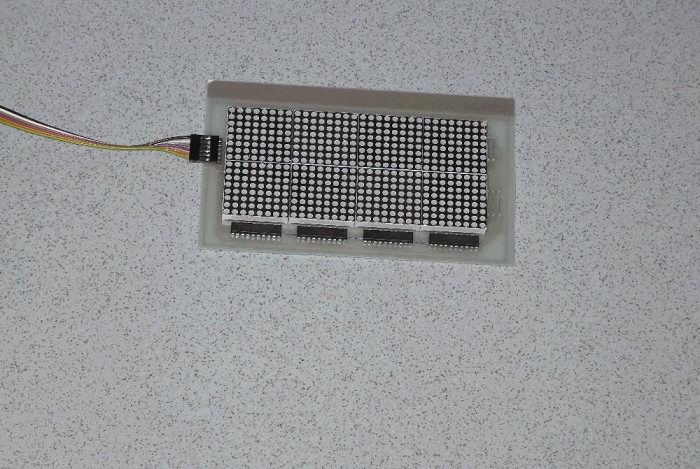

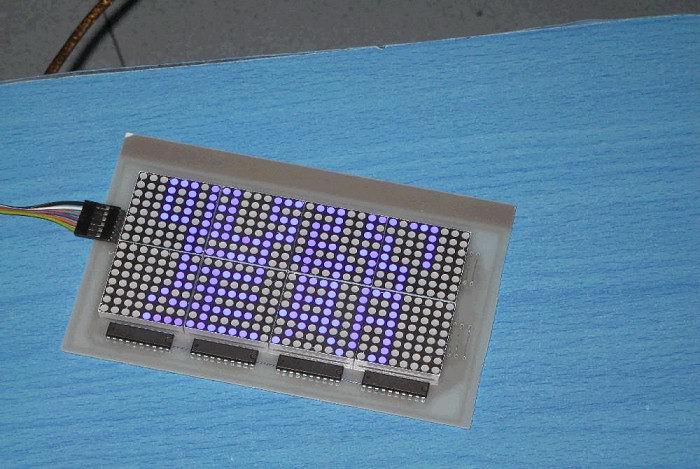

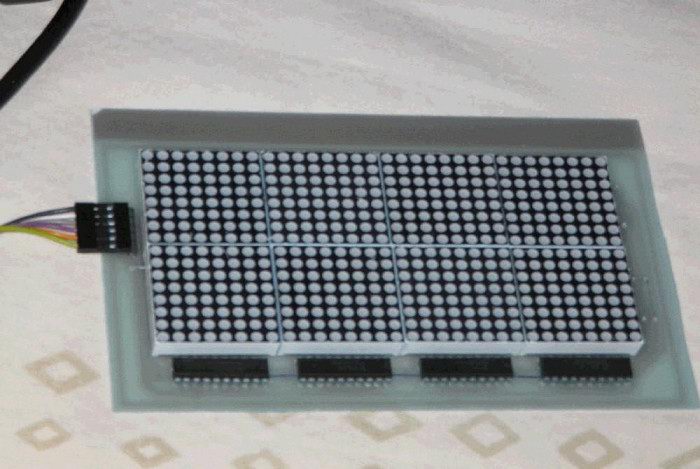

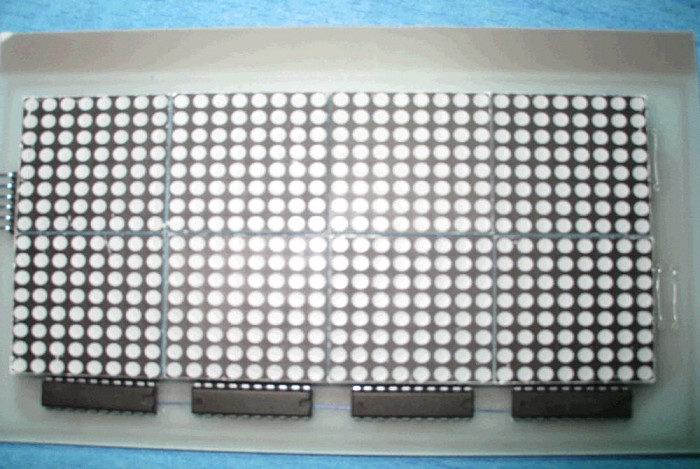

闲来无事，把以前做的一块16*32的点阵屏做万年历玩玩。嘿嘿！
手头现在没有照相机，不能让大家看到实物。

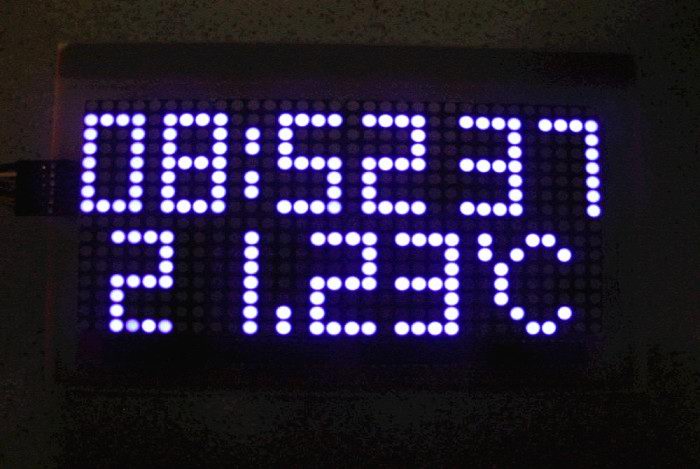

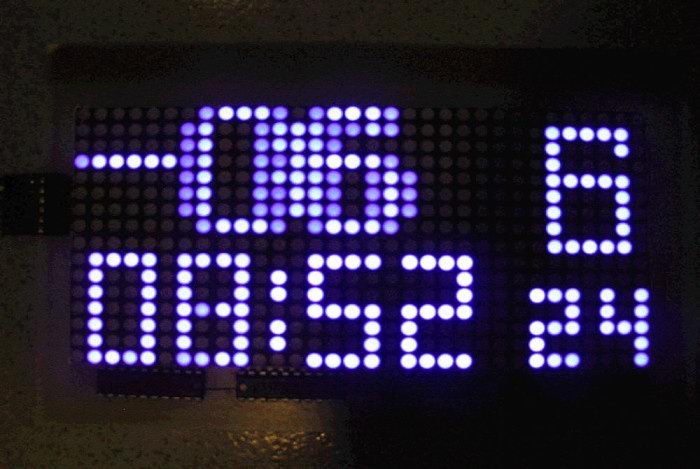

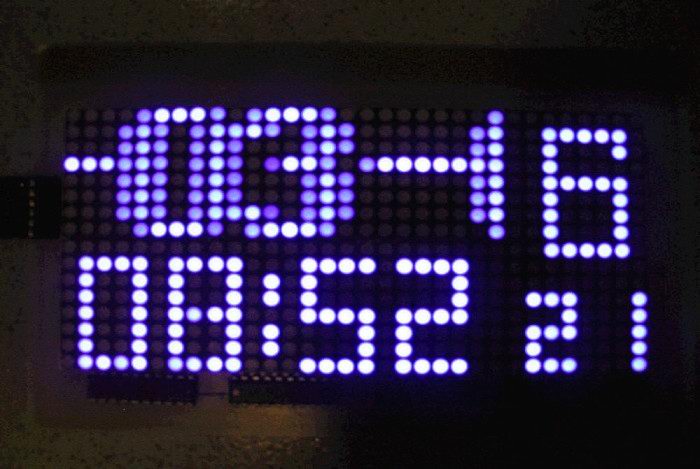

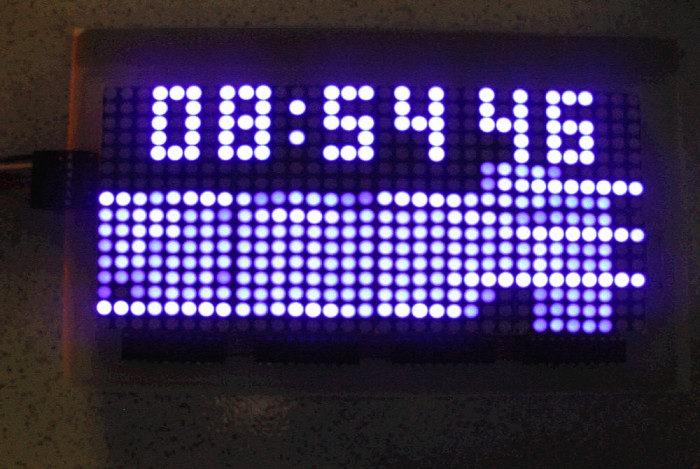

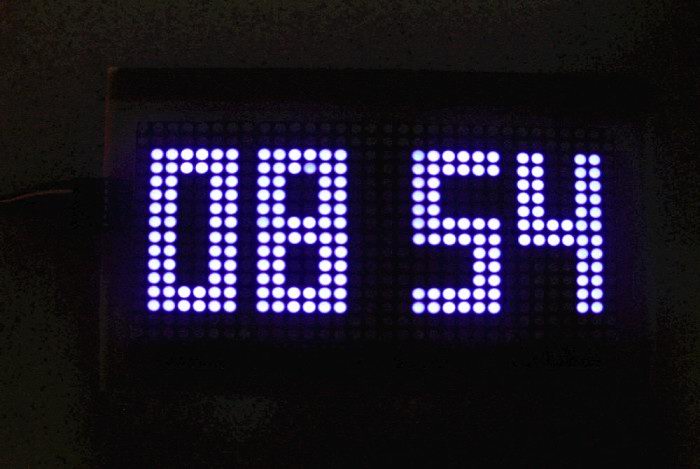

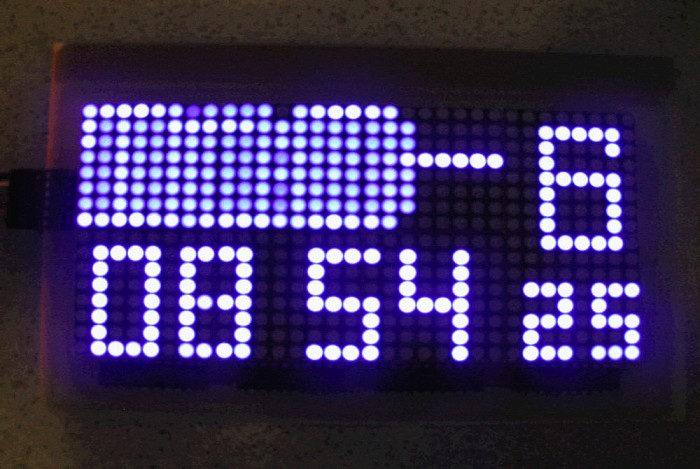

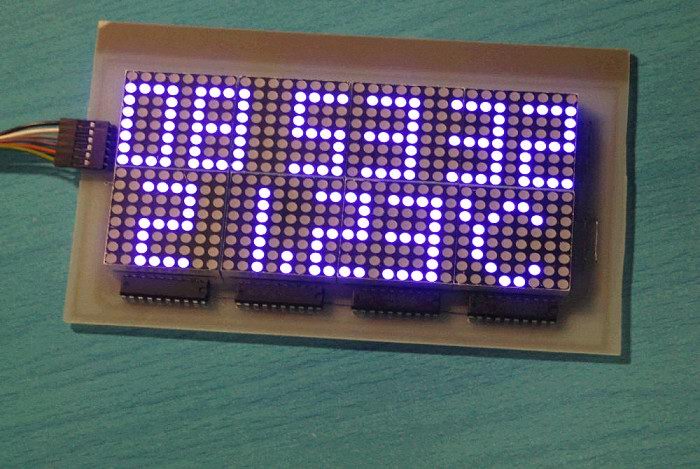

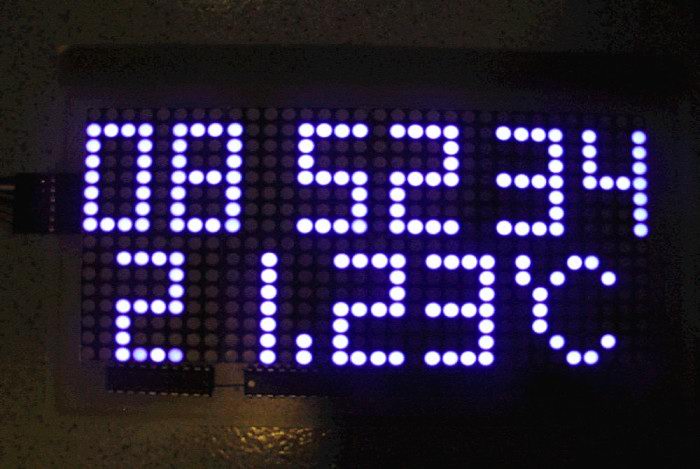

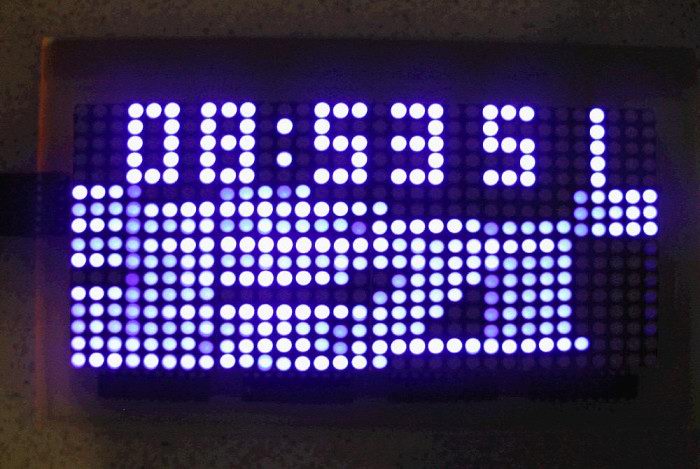

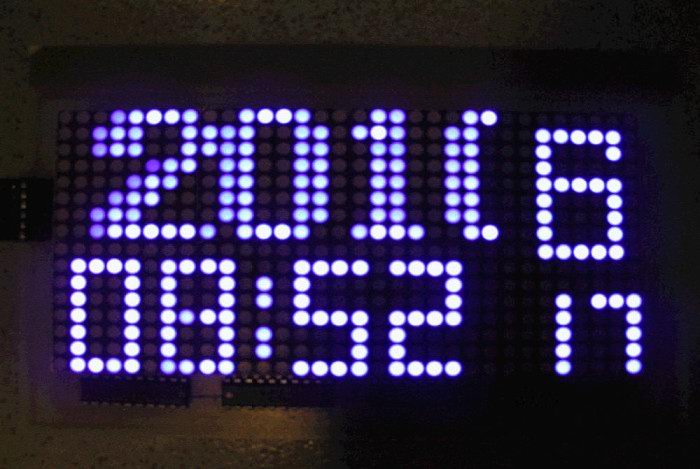

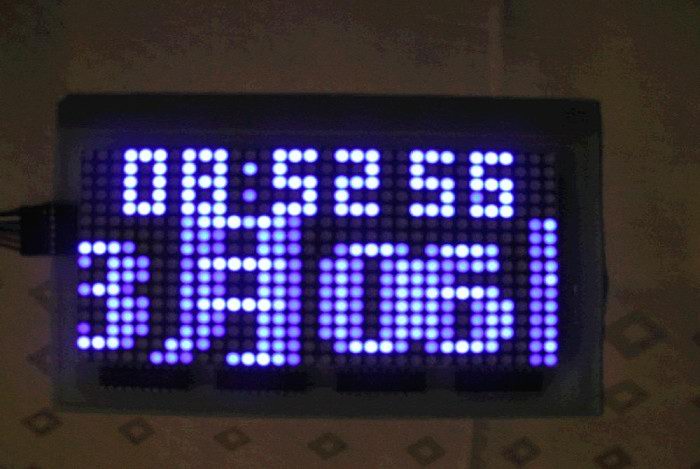

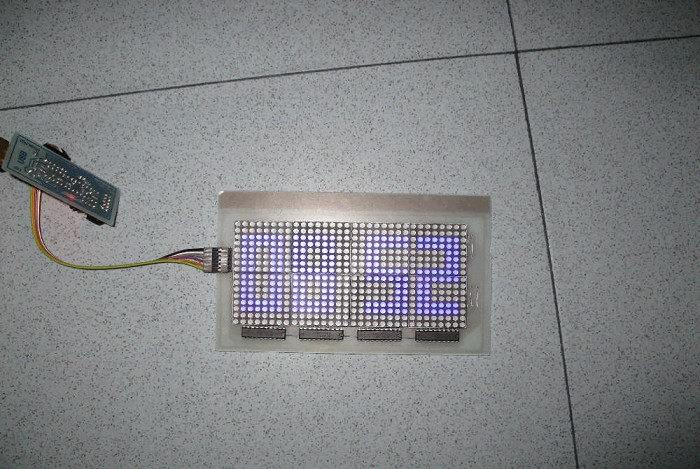

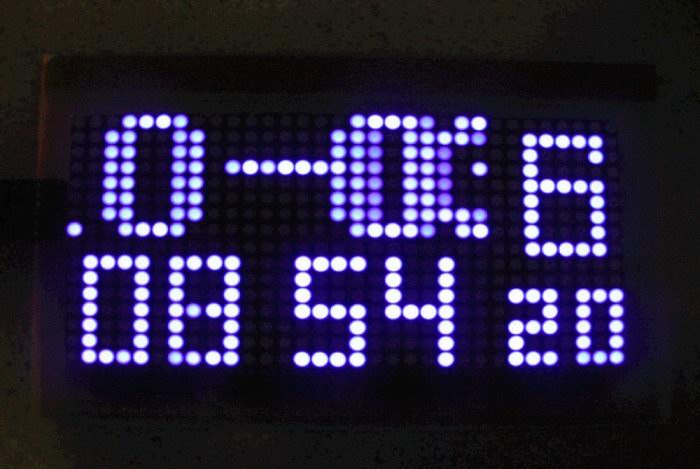

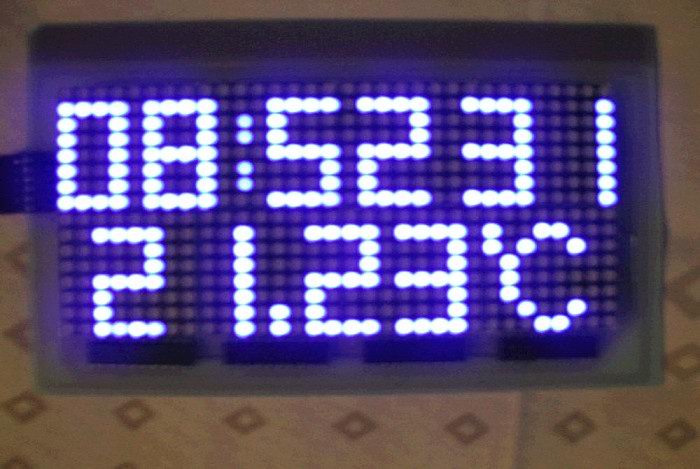

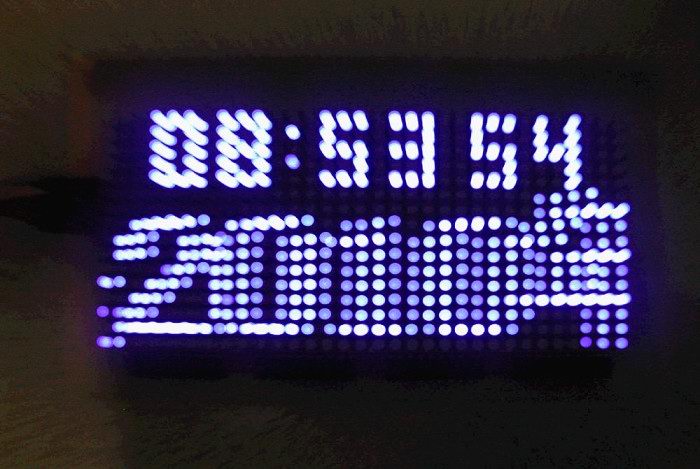

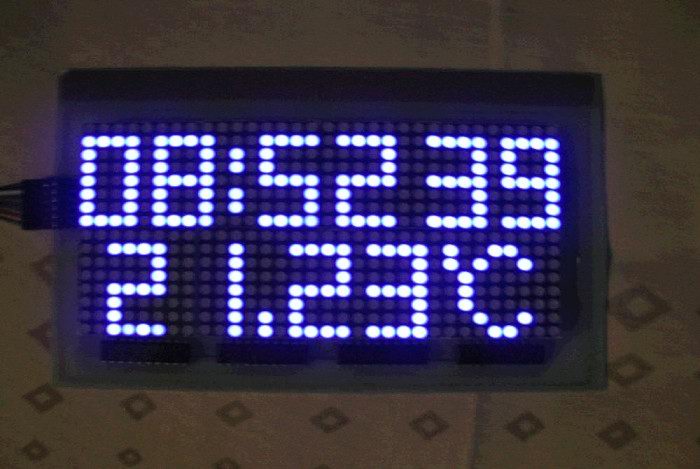

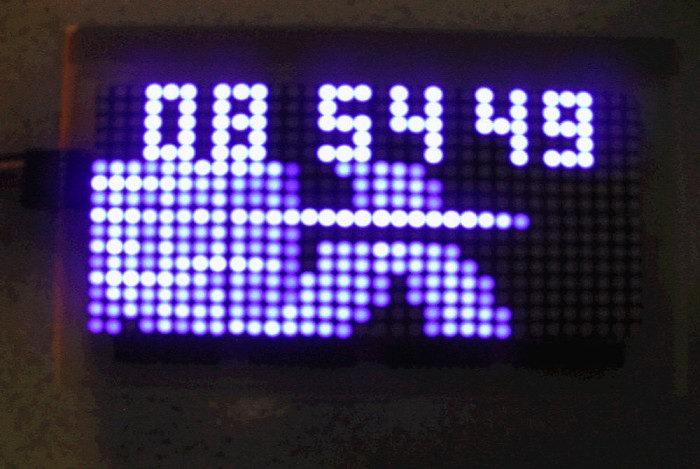

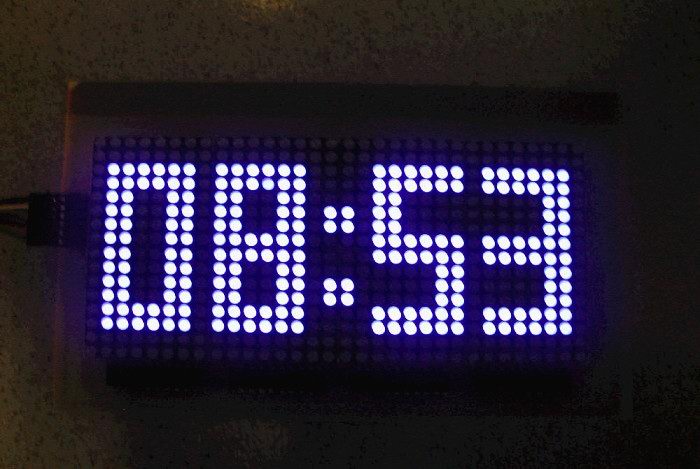

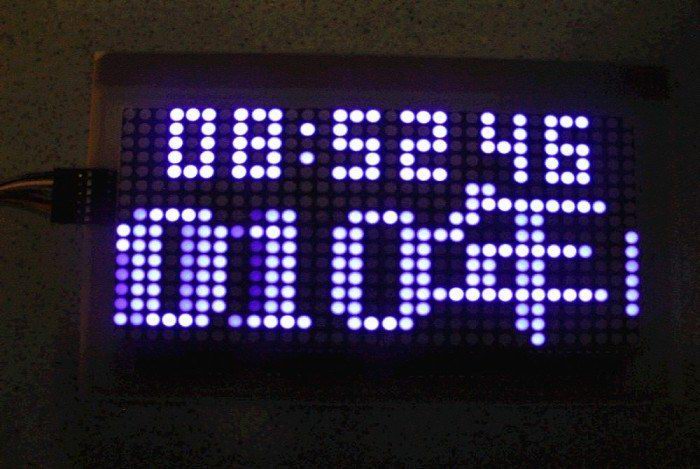

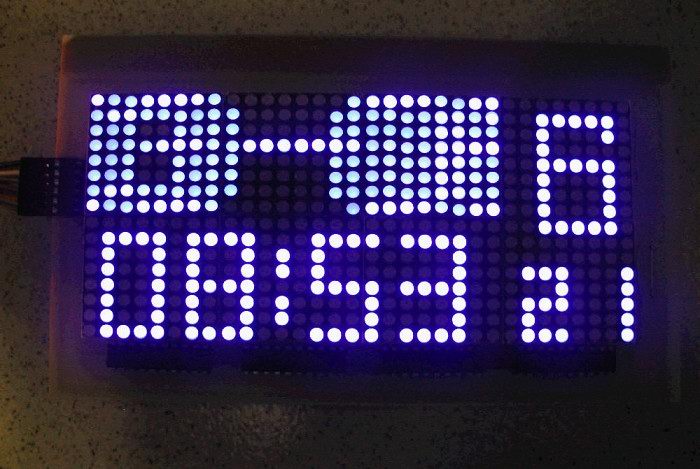

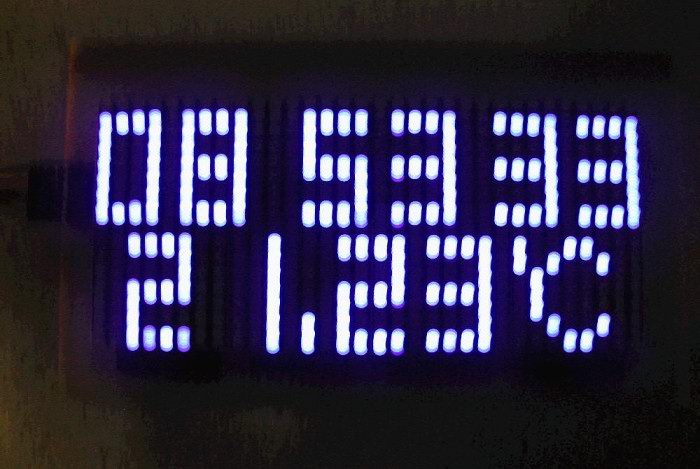

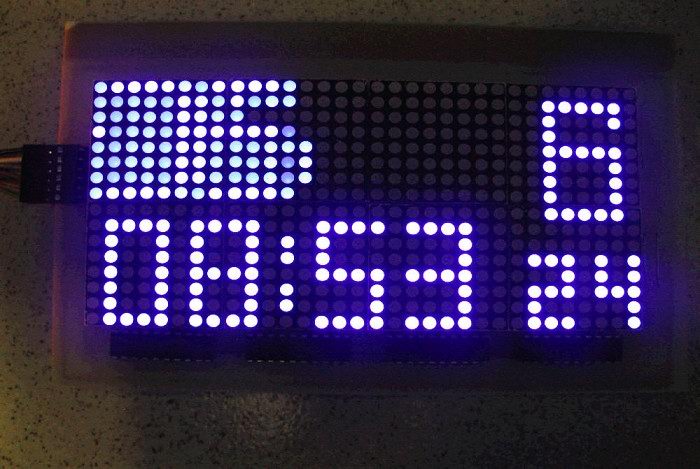

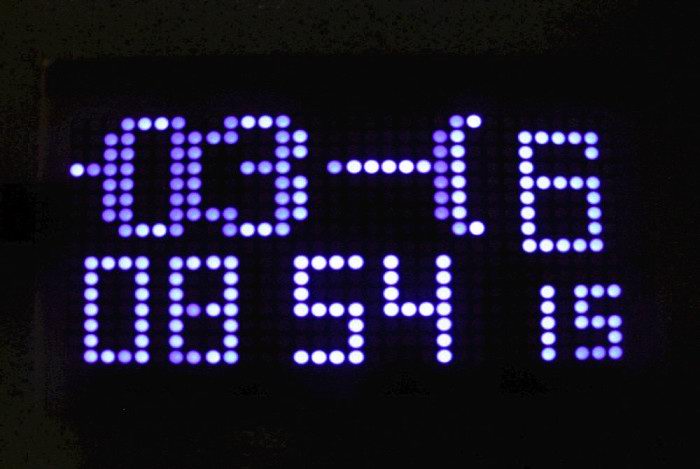

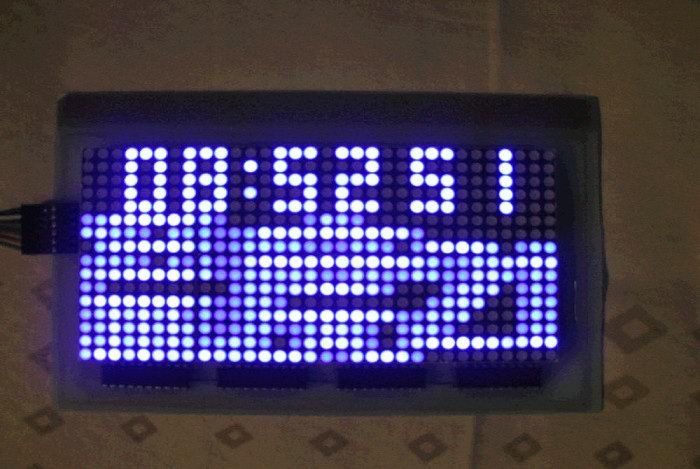

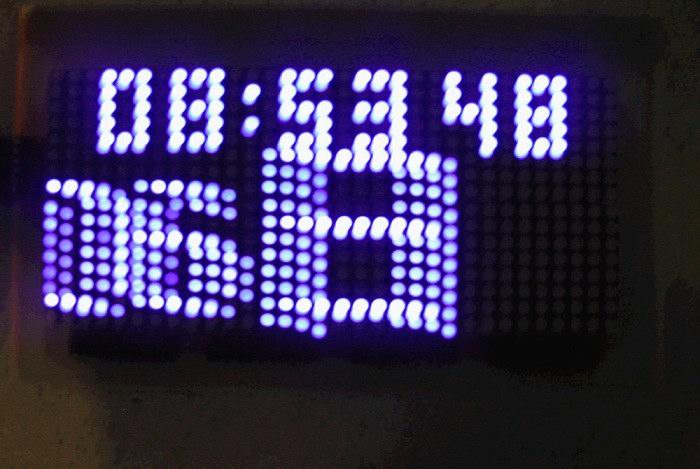

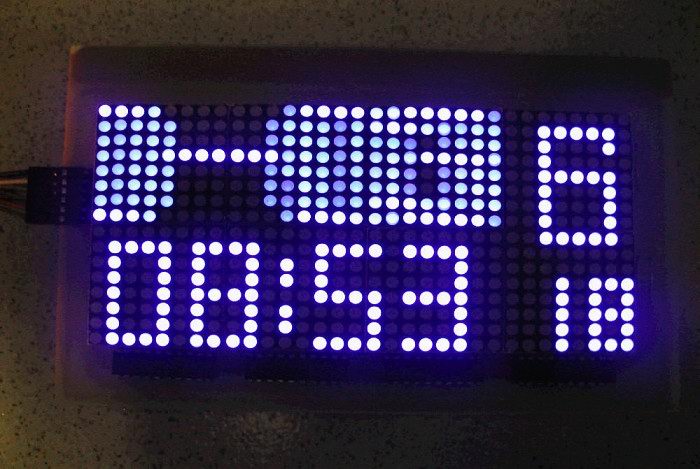

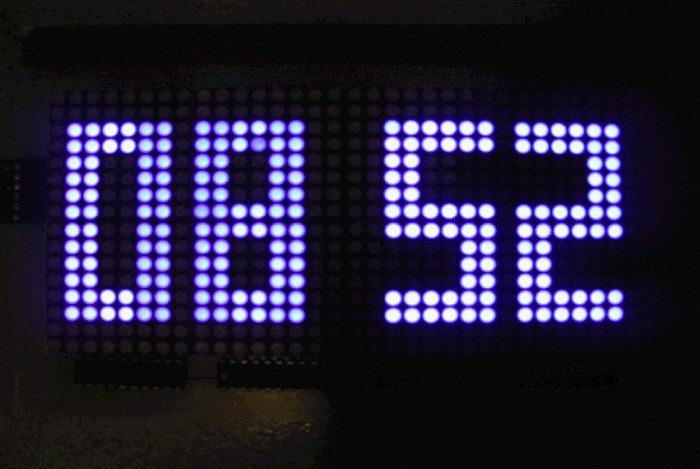

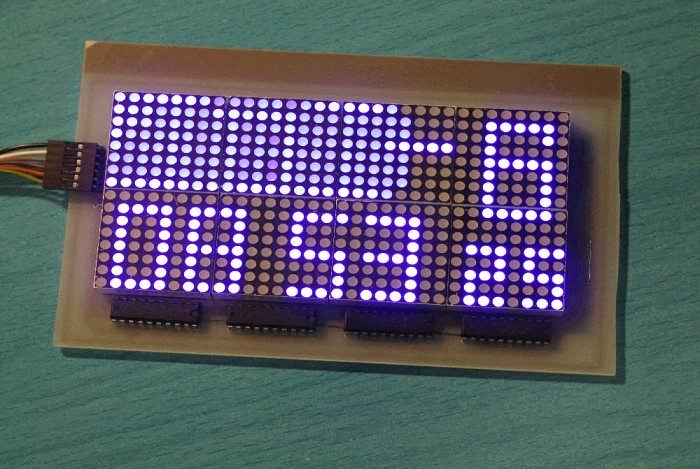

本点阵显示年、月、日、星期、阴历、温度，并且时间可调！
嘿嘿，这几天比较忙，温度功能还没加进去，但细心看程序，可发现温度功能非常容易添加，程序中已经定义温度变量ram 37h 38h。
按键功能也没有添加！但比起整个工程，按键和温度的程序显得有点九牛一毛！
回头完成整个工程，拍照上传。
pcb与汇编程序ourdev_532437.rar(文件大小:34K) (原文件名:PCB与汇编程序.rar)

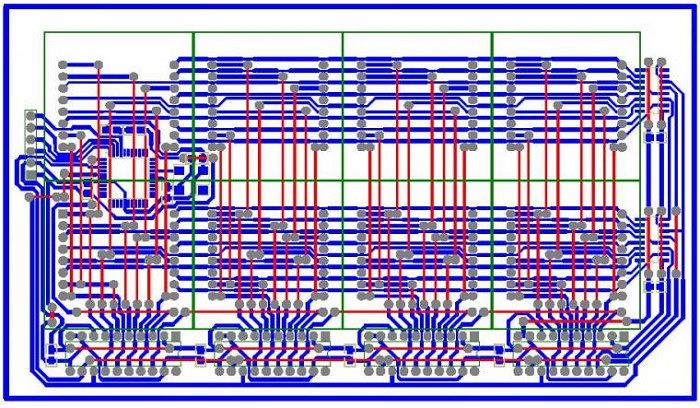

下面是2008画的pcb





2008画的pcb (原文件名:pcb.JPG)



先看程序吧！


  1. ;-------------------------------------------------------------------------------
  2. ;软件环境: VW For Windows
  3. ;硬件环境: AT89C52 MCU,MCS-51系列 MCU,etc.
  4. ;-------------------------------------------------------------------------------
  5. ;点阵屏引脚
  6. ;DAT  [数据引脚]-------------------P1.4
  7. ;SH   [移位时钟]-------------------P1.0
  8. ;ST   [锁存时钟]-------------------P1.2
  9. ;-------------------------------------------------------------------------------
  10. ;单片机RAM定义
  11. ;00H-1FH（四组寄存器）
  12. ;20H-2FH（可位寻址区）
  13. ;30H-5FH（变量定义区）
  14. ;60H-9FH（第一显存区）
  15. ;A0H-DFH（第二显存区）
  16. ;E0H-FFH（堆栈）
  17. ;-------------------------------------------------------------------------------
  18. ;以下为产品接口引脚在演示程序中的预定义
  19. ;用户在编写应用程序时,需按自己的实际硬件连线来重新定义
  20. DAT               BIT P1.4                          ;数据引脚
  21. SH                BIT P1.0                          ;移位时钟
  22. ST                BIT P1.2                          ;锁存时钟
  23. ;-------------------------------------------------------------------------------
  24. ;-------------------------------------------------------------------------------
  25. ;寄存器定义
  26. ;R0显存地址
  27. ;R1缓存地址
  28. ;R2画面选择（只能为1，2，4，5）
  29. ;R3移动字幕显示类型（长还是短）
  30. ;R4比秒更小的单位
  31. ;-------------------------------------------------------------------------------
  32. ;以下变量用于指示当前操作字符的位置的预定义
  33. ;用户在编写应用程序时,需按自己的实际软件程序需要来重新定义
  34. XPOS               EQU 20H                           ;点阵屏横向数据
  35. YPOS1              EQU 21H                           ;点纵屏横向数据
  36. YPOS2              EQU 22H                           ;点纵屏横向数据
  37. YPOS3              EQU 23H                           ;点纵屏横向数据
  38. YPOS4              EQU 24H                           ;点纵屏横向数据
  39. LP8                EQU 25H                           ;循环8次变量
  40.
  41. MAX                EQU 29H                           ;每月最多的天数
  42. SEC                EQU 30H                           ;秒寄存器
  43. MIN                EQU 31H                           ;分寄存器
  44. HOU                EQU 32H                           ;时寄存器
  45. DATE               EQU 33H                           ;日寄存器
  46. WEEK               EQU 34H                           ;星期寄存器
  47. MON                EQU 35H                           ;月寄存器
  48. YEAR               EQU 36H                           ;年寄存器
  49. TMMP1              EQU 37H                           ;温度小数点前
  50. TMMP2              EQU 38H                           ;温度小数点后
  51.
  52. GAO                EQU 40H                           ;高四位
  53. DI                 EQU 41H                           ;第四位
  54. TEM                EQU 42H                           ;时间变量暂时存放地（个位和十位）
  55. MGAO               EQU 43H                           ;移动变量高位
  56. MDI                EQU 44H                           ;移动变量低位
  57. DPH0               EQU 45H                           ;移动图案起始地址高8位
  58. DPL0               EQU 46H                           ;移动图案起始地址低8位
  59. DPH1               EQU 47H                           ;指针1高8位
  60. DPL1               EQU 48H                           ;指针1低8位
  61. DPH2               EQU 49H                           ;指针2高8位
  62. DPL2               EQU 50H                           ;指针2低8位
  63. COMR1              EQU 51H                           ;选择移动画面的类型（画面二与画面四中显示不一样）
  64. COMR3              EQU 52H                           ;移动字幕的长短控制（画面二中移动字幕比较短）
  65.
  66. ;-------------------------------------------------------------------------------
  67.                 ORG 00H                              ;整个程序开始于00H
  68.                 AJMP MAIN
  69.                 ORG 0BH
  70.                 AJMP TIME0                           ;定时器程序向量
  71.                 ORG 030H
  72.
  73. MAIN:
  74.                 MOV SEC,#56H                         ;秒赋值
  75.                 MOV MIN,#51H                         ;分赋值
  76.                 MOV HOU,#22H                         ;时赋值
  77.                 MOV WEEK,#01H                        ;星期赋值
  78.                 MOV DATE,#01H                        ;日赋值
  79.                 MOV MON,#2H                          ;月份赋值
  80.                 MOV YEAR,#10H                        ;年份初始值
  81.                 MOV TMMP1,#21H                       ;温度小数点前初始值
  82.                 MOV TMMP2,#23H                       ;温度小数点后初始值
  83.                 MOV R0,#060H                         ;显存初始地址
  84.                 MOV R1,#0A0H                         ;缓存初始地址
  85.                 MOV R2,#05H                          ;显示画面一
  86.                 MOV R3,#01H                          ;移动变量显示控制
  87.                 MOV R4,#01H                          ;20分之一秒
  88.                 MOV SP,#0DFH                         ;堆栈指向0E0H
  89.                 CALL CLEAR                           ;显存请屏
  90.                 MOV TMOD,#01H                        ;选择定时器及定时器工作方式
  91.                 MOV TH0,#03CH                        ;
  92.                 MOV TR0,#0B0H                        ;设置为500MS
  93.                 SETB TR0                             ;开始定时器0计时
  94.                 SETB EA                              ;中断总开关开
  95.                 SETB ET0                             ;定时器开
  96.                 CALL LONG                            ;选择移动图案的长度及显示长度
  97.                 CALL STARTDPTR                       ;移动图案首地址
  98.                 MOV A,DPH                            ;
  99.                 MOV DPH0,A                           ;
  100.                 MOV A,DPL                            ;
  101.                 MOV DPL0,A                           ;因为后面要用到DPTR所以这先把DPTR保存起来
  102. LOOP:
  103.                 MOV R2,#01H
  104. LOOP1:
  105.                 CALL PUTIN1
  106.                 CALL PROCESS
  107.                 CALL DISPLAY                         ;调用显示程序
  108.                 CALL DISPLAY                         ;
  109.                 MOV A,SEC
  110.                 CJNE A,#015H,LOOP1
  111.                 MOV R2,#02H
  112.                 MOV R3,#01H                          ;变量选择从头开始
  113.                 CALL LONG                            ;选择移动图案的长度及显示长度
  114.                 CALL STARTDPTR                       ;移动图案首地址
  115.                 MOV A,DPH                            ;
  116.                 MOV DPH0,A                           ;
  117.                 MOV A,DPL                            ;
  118.                 MOV DPL0,A                           ;因为后面要用到DPTR所以这先把DPTR保存起来
  119. LOOP2:
  120.                 CALL PROCESS
  121.                 CALL PUTIN2                          ;
  122.                 CALL PUTIN22_                        ;
  123.                 CALL ORLL
  124.                 CALL DISPLAY                         ;调用显示程序
  125.                 CALL DISPLAY                         ;
  126.                 MOV A,SEC
  127.                 CJNE A,#030H,LOOP2
  128.                 MOV R2,#04H
  129. LOOP3:
  130.                 CALL PROCESS
  131.                 CALL PUTIN3                          ;
  132.                 CALL PUTIN32                         ;
  133.                 CALL ORLL                            ;合成PUTIN3画面与PUTIN32画面
  134.                 CALL DISPLAY                         ;调用显示程序
  135.                 CALL DISPLAY
  136.                 MOV A,SEC                         ;
  137.                 CJNE A,#045H,LOOP3
  138.                 MOV R2,#05H
  139.                 MOV R3,#01H                          ;变量选择从头开始
  140.                 CALL LONG                            ;选择移动图案的长度及显示长度
  141.                 CALL STARTDPTR                       ;移动图案首地址
  142.                 MOV A,DPH                            ;
  143.                 MOV DPH0,A                           ;
  144.                 MOV A,DPL                            ;
  145.                 MOV DPL0,A                           ;因为后面要用到DPTR所以这先把DPTR保存起来
  146. LOOP4:
  147.                 CALL PROCESS
  148.                 CALL PUTIN4                          ;
  149.                 CALL PUTIN22_                        ;
  150.                 CALL ORLL                            ;
  151.                 CALL DISPLAY                         ;调用显示程序
  152.                 CALL DISPLAY
  153.                 MOV A,SEC                         ;
  154.                 CJNE A,#000H,LOOP4
  155.                 AJMP LOOP                            ;
  156.
  157.
  158. ;-------------------------------------------------------------------------------
  159. ;子程序名称:CLEAR().
  160. ;功能:显存清零
  161. ;输入:.
  162. ;输出:.
  163. ;影响:.
  164. ;-------------------------------------------------------------------------------
  165. CLEAR:
  166.                 MOV @R0,#00H
  167.                 INC R0
  168.                 CJNE R0,#0A0H,CLEAR             ;显存清零
  169.                 MOV R0,#060H
  170.                 RET
  171.
  172. ;-------------------------------------------------------------------------------
  173. ;###############################################################################
  174. ;###############################四种时间画面的赋值##############################
  175. ;###############################################################################
  176. ;-------------------------------------------------------------------------------
  177. ;-------------------------------------------------------------------------------
  178. ;子程序名称:PUTIN1().
  179. ;功能:画面一的RAM赋值
  180. ;输入:.
  181. ;输出:.
  182. ;影响:.
  183. ;-------------------------------------------------------------------------------
  184. PUTIN1:
  185.                 CALL EMPTY                           ;RAM写入两个空值
  186.                 MOV A,HOU                            ;取出时值
  187.                 CALL FIGURE                          ;数字写入RAM
  188.                 CALL POINT1
  189.                 MOV A,MIN                            ;取出分值
  190.                 CALL FIGURE                          ;数字写入RAM
  191.                 CALL EMPTY
  192.                 RET
  193. ;-------------------------------------------------------------------------------
  194. ;子程序名称:PUTIN2().
  195. ;功能:画面二的RAM赋值
  196. ;输入:.
  197. ;输出:.
  198. ;影响:.
  199. ;-------------------------------------------------------------------------------
  200. PUTIN2:
  201.                 CALL EMPTY
  202.                 MOV A,HOU                            ;取出时值
  203.                 CALL FIGURE                          ;数字写入RAM
  204.                 CALL POINT2
  205.                 MOV A,MIN                            ;取出分值
  206.                 CALL FIGURE                          ;数字写入RAM
  207.                 CALL EMPTY
  208.                 CALL EMPTY
  209.                 CALL EMPTY
  210.                 INC R2                               ;秒大显示大小有变化
  211.                 MOV A,SEC                            ;取出秒值
  212.                 CALL FIGURE                          ;数字写入RAM
  213.                 DEC R2
  214.                 RET
  215. ;-------------------------------------------------------------------------------
  216. ;子程序名称:PUTIN3().
  217. ;功能:画面三的RAM赋值
  218. ;输入:.
  219. ;输出:.
  220. ;影响:.
  221. ;-------------------------------------------------------------------------------
  222. PUTIN3:
  223.                 MOV A,HOU                            ;取出时值
  224.                 CALL FIGURE                          ;数字写入RAM
  225.                 CALL POINT3
  226.                 MOV A,MIN                            ;取出分值
  227.                 CALL FIGURE                          ;数字写入RAM
  228.                 CALL EMPTY
  229.                 CALL EMPTY
  230.                 MOV A,SEC                            ;取出秒值
  231.                 CALL FIGURE                          ;数字写入RAM
  232.                 RET
  233. ;-------------------------------------------------------------------------------
  234. ;子程序名称:PUTIN4().
  235. ;功能:画面四的RAM赋值
  236. ;输入:.
  237. ;输出:.
  238. ;影响:.
  239. ;-------------------------------------------------------------------------------
  240. PUTIN4:
  241.                 CALL EMPTY
  242.                 CALL EMPTY
  243.                 CALL EMPTY
  244.                 MOV A,HOU                            ;取出时值
  245.                 CALL FIGURE                          ;数字写入RAM
  246.                 CALL POINT4
  247.                 MOV A,MIN                            ;取出分值
  248.                 CALL FIGURE                          ;数字写入RAM
  249.                 CALL EMPTY
  250.                 CALL EMPTY
  251.                 MOV A,SEC                            ;取出秒值
  252.                 CALL FIGURE                          ;数字写入RAM
  253.                 CALL EMPTY
  254.                 CALL EMPTY
  255.                 CALL EMPTY
  256.                 RET
  257. ;-------------------------------------------------------------------------------
  258. ;###############################################################################
  259. ;###############################其他数据写入RAM#################################
  260. ;###############################################################################
  261. ;-------------------------------------------------------------------------------
  262. ;-------------------------------------------------------------------------------
  263. ;子程序名称:PUTIN22().
  264. ;功能:
  265. ;输入:.
  266. ;输出:.
  267. ;影响:.
  268. ;-------------------------------------------------------------------------------
  269.
  270. PUTIN22_:                                               ;
  271.                 MOV A,DPH0                              ;
  272.                 MOV DPH,A                               ;
  273.                 MOV A,DPL0                              ;
  274.                 MOV DPL,A                               ;把DPTR0中的值释放出来
  275. PUTIN22:                                                ;
  276.                 MOV R1,#0A0H                            ;
  277.                 MOV A,#00H                              ;
  278.                 MOVC A,@A+DPTR                          ;
  279.                 CJNE A,#0EEH,PUTIN22_2                  ;判断移动固定图案是否取完
  280.                 MOV A,R3
  281.                 CJNE A,COMR3,PUTIN22_1                  ;判断整个移动图案是否取完
  282.                 MOV R3,#01H                             ;控制移动变量的取值
  283.                 CALL STARTDPTR                          ;移动字幕的初始地址
  284.                 AJMP PUTIN22                            ;回到本开始
  285. PUTIN22_1:
  286.                 INC DPTR                                ;固定图案写完，使指针指向下一图案开始
  287.                 MOV A,DPH
  288.                 MOV DPH2,A
  289.                 MOV A,DPL
  290.                 MOV DPL2,A                              ;保存下一图案的指针到DPH2和DPL2
  291.                 CALL PUTCHAR                            ;利用R3选择出要显示的变量，并提取出变量的十位和个位
  292.                 MOV A,MGAO                              ;
  293.                 CALL TAKE                               ;换算出对应的首地址
  294.                 MOV MGAO,#0FFH                          ;十位显示完后做标记
  295.                 AJMP PUTIN22                            ;回到本开始
  296. PUTIN22_2:
  297.                 MOV A,#00H
  298.                 MOVC A,@A+DPTR
  299.                 CJNE A,#0BBH,PUTIN22_5                  ;判断变量是否显示完毕
  300.                 MOV A,MDI                               ;提取个位
  301.                 CJNE A,#0FFH,PUTIN22_3                  ;判断个位是否已经显示
  302.                 AJMP PUTIN22_4                          ;显示过则跳到固定图案
  303. PUTIN22_3:
  304.                 MOV A,MDI                               ;
  305.                 MOV MDI,#0FFH                           ;
  306.                 CALL TAKE                               ;
  307.                 AJMP PUTIN22                            ;回到本开始
  308. PUTIN22_4:
  309.                 INC R3                                  ;指向下一固定图案
  310.                 MOV A,DPH2
  311.                 MOV DPH,A
  312.                 MOV A,DPL2
  313.                 MOV DPL,A                               ;取出保存的指针
  314.                 AJMP PUTIN22                            ;回到本开始
  315. ;-------------------------------------------------------------------------------
  316. ;子程序名称:PUTIN22_5().
  317. ;功能:整屏显示
  318. ;输入:.
  319. ;输出:.
  320. ;影响:.
  321. ;-------------------------------------------------------------------------------
  322. PUTIN22_5:
  323.                 PUSH MGAO                               ;
  324.                 PUSH MDI                                ;
  325.                 PUSH DPH                                ;
  326.                 PUSH DPL                                ;
  327.                 MOV A,R3                                ;
  328.                 PUSH A                                  ;
  329.                 MOV A,DPH2
  330.                 MOV DPH1,A
  331.                 MOV A,DPL2
  332.                 MOV DPL1,A                              ;变量的保存
  333. PUTIN22_6:                                              ;
  334.                 MOV A,#00H                              ;
  335.                 MOVC A,@A+DPTR                          ;
  336.                 CJNE A,#0EEH,PUTIN22_8                  ;判断移动图案显示是否完成
  337.                 MOV A,R3
  338.                 CJNE A,COMR3,PUTIN22_7                  ;判断整个移动图案是否显示完毕
  339.                 MOV R3,#01H                             ;变量控制字复位
  340.                 CALL STARTDPTR                          ;移动固定图案的首地址
  341.                 AJMP PUTIN22_6                          ;回到初始位置
  342. PUTIN22_7:                                              ;
  343.                 INC DPTR                                ;指向下一固定图案的首地址
  344.                 MOV A,DPH                               ;
  345.                 MOV DPH1,A                              ;
  346.                 MOV A,DPL                               ;
  347.                 MOV DPL1,A                              ;保存指针
  348.                 CALL PUTCHAR                            ;
  349.                 MOV A,MGAO                              ;
  350.                 CALL TAKE                               ;
  351.                 MOV MGAO,#0FFH                          ;标记十位，表示已经显示
  352.                 AJMP PUTIN22_6                          ;回到初始位置
  353. PUTIN22_8:                                              ;
  354.                 MOV A,#00H                              ;
  355.                 MOVC A,@A+DPTR                          ;
  356.                 CJNE A,#0BBH,PUTIN22_11                 ;判断变量已经显示完毕
  357.                 MOV A,MDI                               ;
  358.                 CJNE A,#0FFH,PUTIN22_9                  ;判断变量已经完全显示完毕
  359.                 AJMP PUTIN22_10                         ;
  360. PUTIN22_9:                                              ;
  361.                 MOV A,MDI                               ;显示个位
  362.                 MOV MDI,#0FFH                           ;
  363.                 CALL TAKE                               ;
  364.                 AJMP PUTIN22_6                          ;回到初始位置
  365. PUTIN22_10:                                             ;
  366.                 INC R3                                  ;指向下一固定图案
  367.                 MOV A,DPH1                              ;
  368.                 MOV DPH,A                               ;
  369.                 MOV A,DPL1                              ;
  370.                 MOV DPL,A                               ;取出固定图案指针
  371.                 AJMP PUTIN22_6                          ;回到初始位置
  372. PUTIN22_11:                                             ;RAM赋值
  373.                 MOV A,#00H                              ;
  374.                 MOVC A,@A+DPTR                          ;
  375.                 MOV @R1,A                               ;
  376.                 INC R1                                  ;
  377.                 INC DPTR                                ;
  378.                 MOV A,R1
  379.                 CJNE A,COMR1,PUTIN22_6                  ;判断整屏显示是否已完成
  380.                 CALL ADDWEEK                            ;画面二中有静止的星期显示
  381.                 POP A                                   ;
  382.                 MOV R3,A                                ;
  383.                 POP DPL                                 ;
  384.                 POP DPH                                 ;
  385.                 INC DPTR                                ;
  386.                 INC DPTR                                ;为达到移动效果
  387.
  388.                 MOV A,DPH
  389.                 MOV DPH0,A
  390.                 MOV A,DPL
  391.                 MOV DPL0,A
  392.
  393.                 POP MDI                                 ;
  394.                 POP MGAO                                ;数据从堆栈弹出
  395.                 MOV R1,#0A0H
  396.                 RET                                     ;
  397. ;-------------------------------------------------------------------------------
  398. ;子程序名称:PUTIN32().
  399. ;功能:画面三中温度的合成
  400. ;输入:.
  401. ;输出:.
  402. ;影响:.
  403. ;-------------------------------------------------------------------------------
  404. PUTIN32:
  405.                 MOV R0,#0A0H                            ;
  406.                 CALL EMPTY                              ;
  407.                 CALL EMPTY                              ;
  408.                 DEC R2                                  ;
  409.                 DEC R2                                  ;
  410.                 MOV A,TMMP1                             ;
  411.                 CALL FIGURE                             ;
  412.                 CALL POINT32                            ;
  413.                 MOV A,TMMP2                             ;
  414.                 CALL FIGURE                             ;
  415.                 CALL CHAR_C                             ;
  416.                 MOV R0,#060H                            ;
  417.                 INC R2                                  ;
  418.                 INC R2                                  ;
  419.                 RET                                     ;
  420. ;-------------------------------------------------------------------------------
  421. ;###############################################################################
  422. ;###############################缓存与显存相或##################################
  423. ;###############################################################################
  424. ;-------------------------------------------------------------------------------
  425. ;-------------------------------------------------------------------------------
  426. ;子程序名称:ORLL().
  427. ;功能:缓存与显存相或.
  428. ;输入:.
  429. ;输出:.
  430. ;影响:.
  431. ;-------------------------------------------------------------------------------
  432. ORLL:
  433.                 MOV R0,#060H                            ;
  434.                 MOV R1,#0A0H                            ;
  435. ORLL1:
  436.                 MOV A,@R1                               ;
  437.                 ORL A,@R0                               ;
  438.                 MOV @R0,A                               ;
  439.                 INC R0                                  ;
  440.                 INC R1                                  ;
  441.                 CJNE R0,#0A0H,ORLL1                     ;
  442.                 MOV R0,#060H                            ;
  443.                 MOV R1,#0A0H                            ;
  444.                 RET                                     ;
  445. ;-------------------------------------------------------------------------------
  446. ;###############################################################################
  447. ;##################################一列空格#####################################
  448. ;###############################################################################
  449. ;-------------------------------------------------------------------------------
  450. ;-------------------------------------------------------------------------------
  451. ;子程序名称:EMPTY().
  452. ;功能:连续写入两个'0'到RAM.
  453. ;输入:00H.
  454. ;输出:@R0=0.
  455. ;影响:DPTR,R0,@R0.
  456. ;-------------------------------------------------------------------------------
  457. EMPTY:
  458.                 MOV @R0,#00H
  459.                 INC R0
  460.                 MOV @R0,#00H
  461.                 INC R0
  462.                 RET
  463. ;-------------------------------------------------------------------------------
  464. ;###############################################################################
  465. ;##################################时间计算#####################################
  466. ;###############################################################################
  467. ;-------------------------------------------------------------------------------
  468. ;-------------------------------------------------------------------------------
  469. ;子程序名称:PROCESS().
  470. ;功能:时间换算程序.
  471. ;输入:.
  472. ;输出:.
  473. ;影响:.
  474. ;-------------------------------------------------------------------------------
  475. PROCESS:
  476.                 MOV A,SEC
  477.                 CJNE A,#060H,PROCESSEND
  478.                 MOV SEC,#00H
  479.                 INC MIN
  480.                 MOV A,MIN
  481.                 DA A
  482.                 MOV MIN,A
  483.                 CJNE A,#060H,PROCESSEND
  484.                 MOV MIN,#00H
  485.                 INC HOU
  486.                 MOV A,HOU
  487.                 DA A
  488.                 MOV HOU,A
  489.                 CJNE A,#024H,PROCESSEND
  490.                 MOV HOU,#00H
  491.                 INC WEEK
  492.                 MOV A,WEEK
  493.                 CJNE A,#08H,PROCESS1
  494.                 MOV WEEK,#01H
  495. PROCESS1:
  496.                 INC DATE
  497.                 MOV A,DATE
  498.                 DA A
  499.                 LCALL MAXDATE
  500.                 MOV A,DATE
  501.                 CJNE A,MAX,PROCESSEND
  502.                 MOV DATE,#01H
  503.                 INC MON
  504.                 MOV A,MON
  505.                 DA A
  506.                 MOV MON,A
  507.                 CJNE A,#013H,PROCESSEND
  508.                 MOV MON,#01H
  509.                 INC YEAR
  510.                 MOV A,YEAR
  511.                 DA A
  512.                 MOV YEAR,A
  513. PROCESSEND:
  514.                 RET
  515. ;-------------------------------------------------------------------------------
  516. ;子程序名称:MAXDATE().
  517. ;功能:算出每月的最多天数.
  518. ;输入:.
  519. ;输出:?
  520. ;影响:.
  521. ;-------------------------------------------------------------------------------
  522. MAXDATE:
  523.                 MOV A,MON
  524.                 DEC A
  525.                 MOV B,#05H                     ;
  526.                 MUL AB                         ;
  527.                 MOV DPTR,#MAXDATE1             ;
  528.                 JMP @A+DPTR                    ;
  529. MAXDATE1:                                      ;
  530.                 MOV MAX,#032H                  ;因为主程序是相等则循序执行所以这里用的是月最大天数加一
  531.                 AJMP MAXDATEEND                ;
  532.                 MOV MAX,#031H                  ;
  533.                 AJMP MAXDATEEND                ;
  534.                 MOV MAX,#032H
  535.                 AJMP MAXDATEEND
  536.                 MOV MAX,#031H
  537.                 AJMP MAXDATEEND
  538.                 MOV MAX,#032H
  539.                 AJMP MAXDATEEND
  540.                 MOV MAX,#031H
  541.                 AJMP MAXDATEEND
  542.                 MOV MAX,#032H
  543.                 AJMP MAXDATEEND
  544.                 MOV MAX,#032H
  545.                 AJMP MAXDATEEND
  546.                 MOV MAX,#031H
  547.                 AJMP MAXDATEEND
  548.                 MOV MAX,#032H
  549.                 AJMP MAXDATEEND
  550.                 MOV MAX,#031H
  551.                 AJMP MAXDATEEND
  552.                 MOV MAX,#032H
  553.                 AJMP MAXDATEEND
  554. MAXDATEEND:
  555.                 RET
  556. ;-------------------------------------------------------------------------------
  557. ;###############################################################################
  558. ;#################################代表秒的点####################################
  559. ;###############################################################################
  560. ;-------------------------------------------------------------------------------
  561. ;-------------------------------------------------------------------------------
  562. ;子程序名称:POINT1().
  563. ;功能:RAM中写入代表秒的点（画面一）.
  564. ;输入:.
  565. ;输出:?
  566. ;影响:.
  567. ;-------------------------------------------------------------------------------
  568. POINT1:
  569.                 CALL EMPTY
  570.                 MOV A,R4
  571.                 CJNE A,#0AH,POINT11
  572. POINT11:
  573.                 JC POINT12
  574.                 CALL EMPTY
  575.                 CALL EMPTY
  576.                 AJMP POINT1END
  577. POINT12:
  578.                 MOV @R0,#6H
  579.                 INC R0
  580.                 MOV @R0,#030H
  581.                 INC R0
  582.                 MOV @R0,#06H
  583.                 INC R0
  584.                 MOV @R0,#030H
  585.                 INC R0
  586. POINT1END:
  587.                 CALL EMPTY
  588.                 RET
  589. ;-------------------------------------------------------------------------------
  590. ;子程序名称:POINT2().
  591. ;功能:RAM中写入代表秒的点（画面二）.
  592. ;输入:00H.
  593. ;输出:无.
  594. ;影响:R0,@R0.
  595. ;-------------------------------------------------------------------------------
  596. POINT2:
  597.                 CALL EMPTY
  598.                 MOV A,R4
  599.                 CJNE A,#0AH,POINT21
  600. POINT21:
  601.                 JC POINT22
  602.                 CALL EMPTY
  603.                 AJMP POINT2END
  604. POINT22:
  605.                 MOV @R0,#00H
  606.                 INC R0
  607.                 MOV @R0,#036H
  608.                 INC R0
  609. POINT2END:
  610.                 CALL EMPTY
  611.                 RET
  612. ;-------------------------------------------------------------------------------
  613. ;子程序名称:POINT3().
  614. ;功能:RAM中写入代表秒的点（画面三）.
  615. ;输入:00H.
  616. ;输出:无.
  617. ;影响:R0,@R0.
  618. ;-------------------------------------------------------------------------------
  619. POINT3:
  620.                 CALL EMPTY
  621.                 MOV A,R4
  622.                 CJNE A,#0AH,POINT31
  623. POINT31:
  624.                 JC POINT322
  625.                 CALL EMPTY
  626.                 AJMP POINT3END
  627. POINT322:
  628.                 MOV @R0,#36H
  629.                 INC R0
  630.                 MOV @R0,#00H
  631.                 INC R0
  632. POINT3END:
  633.                 CALL EMPTY
  634.                 RET
  635. ;-------------------------------------------------------------------------------
  636. ;子程序名称:POINT4().
  637. ;功能:RAM中写入代表秒的点（画面四）.
  638. ;输入:.
  639. ;输出:.
  640. ;影响:.
  641. ;-------------------------------------------------------------------------------
  642. POINT4:
  643.                 CALL EMPTY
  644.                 MOV A,R4
  645.                 CJNE A,#0AH,POINT41
  646. POINT41:
  647.                 JC POINT42
  648.                 CALL EMPTY
  649.                 AJMP POINT4END
  650. POINT42:
  651.                 MOV @R0,#050H
  652.                 INC R0
  653.                 MOV @R0,#00H
  654.                 INC R0
  655. POINT4END:
  656.                 CALL EMPTY
  657.                 RET
  658. ;-------------------------------------------------------------------------------
  659. ;###############################################################################
  660. ;###################################其它图样####################################
  661. ;###############################################################################
  662. ;-------------------------------------------------------------------------------
  663. ;-------------------------------------------------------------------------------
  664. ;子程序名称:POINT32().
  665. ;功能:RAM中写入温度小数点（画面三）.
  666. ;输入:.
  667. ;输出:无.
  668. ;影响:.
  669. ;修改日期:2010.01.27
  670. ;-------------------------------------------------------------------------------
  671. POINT32:
  672.                 CALL EMPTY
  673.                 MOV @R0,#00H
  674.                 INC R0
  675.                 MOV @R0,#03H
  676.                 INC R0
  677.                 CALL EMPTY
  678.                 RET
  679. ;-------------------------------------------------------------------------------
  680. ;子程序名称:CHAR_C().
  681. ;功能:RAM中写入温度符号（画面三）.
  682. ;输入:.
  683. ;输出:无.
  684. ;影响:.
  685. ;修改日期:2010.01.27
  686. ;-------------------------------------------------------------------------------
  687. CHAR_C:
  688.                 MOV DPTR,#TAB32_C
  689. CHAR_C1:
  690.                 MOV A,#00H
  691.                 MOVC A,@A+DPTR
  692.                 MOV @R0,A
  693.                 INC R0
  694.                 INC DPTR
  695.                 MOV A,#00H
  696.                 MOVC A,@A+DPTR
  697.                 CJNE A,#0BBH,CHAR_C1
  698.                 RET
  699. ;-------------------------------------------------------------------------------
  700. ;###############################################################################
  701. ;################################查表并写入RAM##################################
  702. ;###############################################################################
  703. ;-------------------------------------------------------------------------------
  704. ;-------------------------------------------------------------------------------
  705. ;子程序名称:FIGURE().
  706. ;功能:数字写入RAM
  707. ;输入:A.
  708. ;输出:A.
  709. ;影响:@R0.
  710. ;-------------------------------------------------------------------------------
  711. FIGURE:
  712.                 CALL BRING                           ;分离小时的十位和个位
  713.                 MOV A,GAO                            ;
  714.                 CALL FIND                            ;DPTR值寻址
  715.                 CALL RAM                             ;寻址到的数据写入RAM
  716.                 CALL EMPTY                           ;RAM写入两个空值
  717.                 MOV A,DI
  718.                 CALL FIND
  719.                 CALL RAM
  720.                 RET
  721. ;-------------------------------------------------------------------------------
  722. ;子程序名称:BRING().
  723. ;功能:提取十位和个位
  724. ;输入:A.
  725. ;输出:.
  726. ;影响:.
  727. ;-------------------------------------------------------------------------------
  728. BRING:
  729.                 MOV TEM,A
  730.                 ANL A,#0FH
  731.                 MOV DI,A
  732.                 MOV A,TEM
  733.                 SWAP A
  734.                 ANL A,#0FH
  735.                 MOV GAO,A
  736.                 RET
  737. ;-------------------------------------------------------------------------------
  738. ;子程序名称:RAM().
  739. ;功能:把查表的数据写入RAM
  740. ;输入:@DPTR.
  741. ;输出:@R0.
  742. ;影响:DPTR,R0 .
  743. ;-------------------------------------------------------------------------------
  744. RAM:
  745.                 MOV A,#00H                      ;偏移量清零
  746.                 MOVC A,@A+DPTR                  ;查表
  747.                 MOV @R0,A                       ;显存赋值
  748.                 INC DPTR                        ;表格地址加一
  749.                 INC R0                          ;显存地址加一
  750.                 MOV A,#00H                      ;
  751.                 MOVC A,@A+DPTR                  ;
  752.                 CJNE A,#0BBH,RAM                ;数字赋值完成
  753. RAMEND:
  754.                 RET
  755. ;-------------------------------------------------------------------------------
  756. ;子程序名称:FIND().
  757. ;功能:分别提取十位和个位数字在表格中的首地址
  758. ;输入:43H(TEM0).
  759. ;输出:40H（GAO）,41H（DI）.
  760. ;影响:42H（TEM）.
  761. ;-------------------------------------------------------------------------------
  762. FIND:                                           ;
  763.                 CALL PICTURE                    ;选择将要送入首地址的值
  764.                 MOV B,#05H                      ;
  765.                 MUL AB                          ;
  766.                 JMP @A+DPTR                     ;
  767. TDPTR1:                                         ;画面一数字查表
  768.                 MOV DPTR,#TAB11_0               ;
  769.                 AJMP FINDEND                    ;
  770.                 MOV DPTR,#TAB11_1               ;
  771.                 AJMP FINDEND                    ;
  772.                 MOV DPTR,#TAB11_2               ;
  773.                 AJMP FINDEND                    ;
  774.                 MOV DPTR,#TAB11_3               ;
  775.                 AJMP FINDEND                    ;
  776.                 MOV DPTR,#TAB11_4               ;
  777.                 AJMP FINDEND                    ;
  778.                 MOV DPTR,#TAB11_5               ;
  779.                 AJMP FINDEND                    ;
  780.                 MOV DPTR,#TAB11_6               ;
  781.                 AJMP FINDEND                    ;
  782.                 MOV DPTR,#TAB11_7               ;
  783.                 AJMP FINDEND                    ;
  784.                 MOV DPTR,#TAB11_8               ;
  785.                 AJMP FINDEND                    ;
  786.                 MOV DPTR,#TAB11_9               ;
  787.                 AJMP FINDEND                    ;
  788. TDPTR2:                                         ;画面二数字查表
  789.                 MOV DPTR,#TAB21_0               ;
  790.                 AJMP FINDEND                    ;
  791.                 MOV DPTR,#TAB21_1               ;
  792.                 AJMP FINDEND                    ;
  793.                 MOV DPTR,#TAB21_2               ;
  794.                 AJMP FINDEND                    ;
  795.                 MOV DPTR,#TAB21_3               ;
  796.                 AJMP FINDEND                    ;
  797.                 MOV DPTR,#TAB21_4               ;
  798.                 AJMP FINDEND                    ;
  799.                 MOV DPTR,#TAB21_5               ;
  800.                 AJMP FINDEND                    ;
  801.                 MOV DPTR,#TAB21_6               ;
  802.                 AJMP FINDEND                    ;
  803.                 MOV DPTR,#TAB21_7               ;
  804.                 AJMP FINDEND                    ;
  805.                 MOV DPTR,#TAB21_8               ;
  806.                 AJMP FINDEND                    ;
  807.                 MOV DPTR,#TAB21_9               ;
  808.                 AJMP FINDEND                    ;
  809. TDPTR22:                                        ;画面二数字查表
  810.                 MOV DPTR,#TAB21_0_              ;
  811.                 AJMP FINDEND                    ;
  812.                 MOV DPTR,#TAB21_1_              ;
  813.                 AJMP FINDEND                    ;
  814.                 MOV DPTR,#TAB21_2_              ;
  815.                 AJMP FINDEND                    ;
  816.                 MOV DPTR,#TAB21_3_              ;
  817.                 AJMP FINDEND                    ;
  818.                 MOV DPTR,#TAB21_4_              ;
  819.                 AJMP FINDEND                    ;
  820.                 MOV DPTR,#TAB21_5_              ;
  821.                 AJMP FINDEND                    ;
  822.                 MOV DPTR,#TAB21_6_              ;
  823.                 AJMP FINDEND                    ;
  824.                 MOV DPTR,#TAB21_7_              ;
  825.                 AJMP FINDEND                    ;
  826.                 MOV DPTR,#TAB21_8_              ;
  827.                 AJMP FINDEND                    ;
  828.                 MOV DPTR,#TAB21_9_              ;
  829.                 AJMP FINDEND                    ;
  830. TDPTR3:                                         ;画面三数据查表
  831.                 MOV DPTR,#TAB31_0               ;
  832.                 AJMP FINDEND                    ;
  833.                 MOV DPTR,#TAB31_1               ;
  834.                 AJMP FINDEND                    ;
  835.                 MOV DPTR,#TAB31_2               ;
  836.                 AJMP FINDEND                    ;
  837.                 MOV DPTR,#TAB31_3               ;
  838.                 AJMP FINDEND                    ;
  839.                 MOV DPTR,#TAB31_4               ;
  840.                 AJMP FINDEND                    ;
  841.                 MOV DPTR,#TAB31_5               ;
  842.                 AJMP FINDEND                    ;
  843.                 MOV DPTR,#TAB31_6               ;
  844.                 AJMP FINDEND                    ;
  845.                 MOV DPTR,#TAB31_7               ;
  846.                 AJMP FINDEND                    ;
  847.                 MOV DPTR,#TAB31_8               ;
  848.                 AJMP FINDEND                    ;
  849.                 MOV DPTR,#TAB31_9               ;
  850.                 AJMP FINDEND                    ;
  851. TDPTR4:                                         ;画面三数据查表
  852.                 MOV DPTR,#TAB41_0               ;
  853.                 AJMP FINDEND                    ;
  854.                 MOV DPTR,#TAB41_1               ;
  855.                 AJMP FINDEND                    ;
  856.                 MOV DPTR,#TAB41_2               ;
  857.                 AJMP FINDEND                    ;
  858.                 MOV DPTR,#TAB41_3               ;
  859.                 AJMP FINDEND                    ;
  860.                 MOV DPTR,#TAB41_4               ;
  861.                 AJMP FINDEND                    ;
  862.                 MOV DPTR,#TAB41_5               ;
  863.                 AJMP FINDEND                    ;
  864.                 MOV DPTR,#TAB41_6               ;
  865.                 AJMP FINDEND                    ;
  866.                 MOV DPTR,#TAB41_7               ;
  867.                 AJMP FINDEND                    ;
  868.                 MOV DPTR,#TAB41_8               ;
  869.                 AJMP FINDEND                    ;
  870.                 MOV DPTR,#TAB41_9               ;
  871.                 AJMP FINDEND                    ;
  872. FINDEND:                                        ;
  873.                 RET
  874. ;-------------------------------------------------------------------------------
  875. ;子程序名称:PICTURE().
  876. ;功能:选择将要送入首地址的值.
  877. ;输入:R2.
  878. ;输出:无.
  879. ;影响:无.
  880. ;-------------------------------------------------------------------------------
  881. PICTURE:
  882.                 CJNE R2,#1H,PICTURE1
  883.                 MOV DPTR,#TDPTR1                ;
  884.                 AJMP PICEND
  885. PICTURE1:
  886.                 CJNE R2,#2H,PICTURE22
  887.                 MOV DPTR,#TDPTR2                ;画面二的时间和画面三中的温度均要使用此查表指令
  888.                 AJMP PICEND
  889. PICTURE22:
  890.                 CJNE R2,#3H,PICTURE3
  891.                 MOV DPTR,#TDPTR22               ;画面二中数字大小不一样
  892.                 AJMP PICEND
  893. PICTURE3:
  894.                 CJNE R2,#4H,PICTURE4
  895.                 MOV DPTR,#TDPTR3                ;
  896.                 AJMP PICEND
  897. PICTURE4:
  898.                 MOV DPTR,#TDPTR4
  899. PICEND:
  900.                 RET
  901. ;-------------------------------------------------------------------------------
  902. ;子程序名称:PUTCHAR().
  903. ;功能:利用R3选择出要显示的变量
  904. ;输入:R3.
  905. ;输出:.
  906. ;影响:.
  907. ;-------------------------------------------------------------------------------
  908. PUTCHAR:
  909.                 CJNE R3,#1,CHAR1
  910.                 MOV A,YEAR
  911.                 CALL BRING_
  912.                 AJMP CHAREND                               ;取出变量各位和十位对应的首地址
  913. CHAR1:
  914.                 CJNE R3,#2,CHAR2
  915.                 MOV A,MON
  916.                 CALL BRING_
  917.                 AJMP CHAREND
  918. CHAR2:
  919.                 CJNE R3,#3,CHAR3
  920.                 MOV A,DATE
  921.                 CALL BRING_
  922.                 AJMP CHAREND
  923. CHAR3:
  924.                 CJNE R3,#4,CHAR4
  925.                 MOV A,WEEK
  926.                 CALL BRING_
  927.                 AJMP CHAREND
  928. CHAR4:
  929.                 CJNE R3,#5,CHAR5
  930.                 MOV A,TMMP1
  931.                 CALL BRING_
  932.                 AJMP CHAREND
  933. CHAR5:
  934.                 CJNE R3,#6,CHAREND
  935.                 MOV A,TMMP2
  936.                 CALL BRING_
  937.                 AJMP CHAREND
  938. CHAREND:
  939.                 RET
  940.
  941. ;-------------------------------------------------------------------------------
  942. ;子程序名称:BRING_().
  943. ;功能:提取十位和个位
  944. ;输入:A.
  945. ;输出:40H（MGAO）,41H（DI）.
  946. ;影响:42H（TEM）.
  947. ;-------------------------------------------------------------------------------
  948. BRING_:
  949.                 MOV TEM,A
  950.                 ANL A,#0FH
  951.                 MOV MDI,A
  952.                 MOV A,TEM
  953.                 SWAP A
  954.                 ANL A,#0FH
  955.                 MOV MGAO,A
  956.                 RET
  957.
  958. ;-------------------------------------------------------------------------------
  959. ;子程序名称:STARTDPTR().
  960. ;功能:选择移动图案首地址的位置
  961. ;输入:R2.
  962. ;输出:.
  963. ;影响:.
  964. ;-------------------------------------------------------------------------------
  965. STARTDPTR:
  966.                 CJNE R2,#2H,STARTDPTR1
  967.                 MOV DPTR,#TAB22_
  968.                 AJMP STARTDPTREND
  969. STARTDPTR1:
  970.                 CJNE R2,#5H,STARTDPTREND
  971.                 MOV DPTR,#TAB42_
  972. STARTDPTREND:
  973.                 RET
  974. ;-------------------------------------------------------------------------------
  975. ;子程序名称:LONG().
  976. ;功能:选择移动图案的长度及显示长度
  977. ;输入:R2.
  978. ;输出:.
  979. ;影响:.
  980. ;-------------------------------------------------------------------------------
  981. LONG:                                                   ;
  982.                 CJNE R2,#2H,LONG1
  983.                 MOV COMR3,#04H
  984.                 MOV COMR1,#0D0H
  985.                 AJMP LONGEND
  986. LONG1:
  987.                 CJNE R2,#5H,LONGEND
  988.                 MOV COMR3,#06H
  989.                 MOV COMR1,#0E0H
  990. LONGEND:
  991.                 RET
  992. ;-------------------------------------------------------------------------------
  993. ;子程序名称:ADDWEEK().
  994. ;功能:画面二中有静止的星期显示
  995. ;输入:.
  996. ;输出:.
  997. ;影响:.
  998. ;-------------------------------------------------------------------------------
  999. ADDWEEK:
  1000.                 CJNE R1,#0E0H,ADDWEEK1
  1001.                 AJMP ADDWEEKEND
  1002. ADDWEEK1:
  1003.                 MOV A,WEEK
  1004.                 DEC A
  1005.                 MOV DPTR,#ADDWEEK2
  1006.                 MOV B,#05H
  1007.                 MUL AB                                   ;
  1008.                 JMP @A+DPTR                              ;
  1009. ADDWEEK2:
  1010.                 MOV DPTR,#TAB22_W1                       ;
  1011.                 AJMP ADDWEEK3                            ;
  1012.                 MOV DPTR,#TAB22_W2                       ;
  1013.                 AJMP ADDWEEK3                            ;
  1014.                 MOV DPTR,#TAB22_W3                       ;
  1015.                 AJMP ADDWEEK3                            ;
  1016.                 MOV DPTR,#TAB22_W4                       ;
  1017.                 AJMP ADDWEEK3                            ;
  1018.                 MOV DPTR,#TAB22_W5                       ;
  1019.                 AJMP ADDWEEK3                            ;
  1020.                 MOV DPTR,#TAB22_W6                       ;
  1021.                 AJMP ADDWEEK3                            ;
  1022.                 MOV DPTR,#TAB22_W7                       ;
  1023.                 AJMP ADDWEEK3                            ;
  1024. ADDWEEK3:
  1025.                 MOV A,#00H
  1026.                 MOVC A,@A+DPTR
  1027.                 CJNE A,#0BBH,ADDWEEK4
  1028.                 AJMP ADDWEEKEND
  1029. ADDWEEK4:
  1030.                 MOV @R1,A
  1031.                 INC R1
  1032.                 INC DPTR
  1033.                 AJMP ADDWEEK3
  1034. ADDWEEKEND:
  1035.                 RET
  1036. ;-------------------------------------------------------------------------------
  1037. ;子程序名称:TAKE().
  1038. ;功能:移动图案变量首地址赋值
  1039. ;输入:R2,R3.
  1040. ;输出:.
  1041. ;影响:
  1042. ;-------------------------------------------------------------------------------
  1043. TAKE:
  1044.                 CJNE R3,#4H,TAKE1
  1045.                 MOV DPTR,#TDPTR42
  1046.                 AJMP TAKE3
  1047.
  1048. TAKE1:
  1049.                 CJNE R2,#2,TAKE2
  1050.                 MOV DPTR,#TDPTR22_
  1051.                 AJMP TAKE3
  1052. TAKE2:
  1053.                 CJNE R2,#5,TAKE2
  1054.                 MOV DPTR,#TDPTR32
  1055.                 AJMP TAKE3
  1056. TAKE3:
  1057.                 MOV B,#05H                              ;
  1058.                 MUL AB                                  ;
  1059.                 JMP @A+DPTR                             ;
  1060. TDPTR22_:                                               ;画面二数字查表
  1061.                 MOV DPTR,#TAB22_0                       ;
  1062.                 AJMP TAKEDEND                           ;
  1063.                 MOV DPTR,#TAB22_1                       ;
  1064.                 AJMP TAKEDEND                           ;
  1065.                 MOV DPTR,#TAB22_2                       ;
  1066.                 AJMP TAKEDEND                           ;
  1067.                 MOV DPTR,#TAB22_3                       ;
  1068.                 AJMP TAKEDEND                           ;
  1069.                 MOV DPTR,#TAB22_4                       ;
  1070.                 AJMP TAKEDEND                           ;
  1071.                 MOV DPTR,#TAB22_5                       ;
  1072.                 AJMP TAKEDEND                           ;
  1073.                 MOV DPTR,#TAB22_6                       ;
  1074.                 AJMP TAKEDEND                           ;
  1075.                 MOV DPTR,#TAB22_7                       ;
  1076.                 AJMP TAKEDEND                           ;
  1077.                 MOV DPTR,#TAB22_8                       ;
  1078.                 AJMP TAKEDEND                           ;
  1079.                 MOV DPTR,#TAB22_9                       ;
  1080.                 AJMP TAKEDEND                           ;
  1081. TDPTR32:                                                 ;画面四数字查表
  1082.                 MOV DPTR,#TAB42_0                       ;
  1083.                 AJMP TAKEDEND                           ;
  1084.                 MOV DPTR,#TAB42_1                       ;
  1085.                 AJMP TAKEDEND                           ;
  1086.                 MOV DPTR,#TAB42_2                       ;
  1087.                 AJMP TAKEDEND                           ;
  1088.                 MOV DPTR,#TAB42_3                       ;
  1089.                 AJMP TAKEDEND                           ;
  1090.                 MOV DPTR,#TAB42_4                       ;
  1091.                 AJMP TAKEDEND                           ;
  1092.                 MOV DPTR,#TAB42_5                       ;
  1093.                 AJMP TAKEDEND                           ;
  1094.                 MOV DPTR,#TAB42_6                       ;
  1095.                 AJMP TAKEDEND                           ;
  1096.                 MOV DPTR,#TAB42_7                       ;
  1097.                 AJMP TAKEDEND                           ;
  1098.                 MOV DPTR,#TAB42_8                       ;
  1099.                 AJMP TAKEDEND                           ;
  1100.                 MOV DPTR,#TAB42_9                       ;
  1101.                 AJMP TAKEDEND                           ;
  1102. TDPTR42:
  1103.                                                         ;画面四星期查表
  1104.                 MOV DPTR,#TAB42_W0                      ;
  1105.                 AJMP TAKEDEND                           ;
  1106.                 MOV DPTR,#TAB42_W1                      ;
  1107.                 AJMP TAKEDEND                           ;
  1108.                 MOV DPTR,#TAB42_W2                      ;
  1109.                 AJMP TAKEDEND                           ;
  1110.                 MOV DPTR,#TAB42_W3                      ;
  1111.                 AJMP TAKEDEND                           ;
  1112.                 MOV DPTR,#TAB42_W4                      ;
  1113.                 AJMP TAKEDEND                           ;
  1114.                 MOV DPTR,#TAB42_W5                      ;
  1115.                 AJMP TAKEDEND                           ;
  1116.                 MOV DPTR,#TAB42_W6                      ;
  1117.                 AJMP TAKEDEND                           ;
  1118.                 MOV DPTR,#TAB42_W7                      ;
  1119.                 AJMP TAKEDEND                           ;
  1120. TAKEDEND:
  1121.                 RET
  1122. ;-------------------------------------------------------------------------------
  1123. ;###############################################################################
  1124. ;###############################点阵屏显示子程序################################
  1125. ;###############################################################################
  1126. ;-------------------------------------------------------------------------------
  1127. ;子程序名称:DISPLAY().
  1128. ;功能:点阵屏显示子程序
  1129. ;输入:RAM（060H-09FH）.
  1130. ;输出:无.
  1131. ;影响:20H，21H，22H，23H，24H，25H，A.
  1132. ;-------------------------------------------------------------------------------
  1133. DISPLAY:
  1134.                 CLR SH                    ;移位时钟清零
  1135.                 CLR ST                    ;锁存始终清零
  1136.                 MOV YPOS1,#080H           ;纵行移动赋值'10000000b'
  1137.                 MOV YPOS2,#00H            ;
  1138.                 MOV YPOS3,#00H            ;
  1139.                 MOV YPOS4,#00H            ;
  1140.                 MOV R0,#060H              ;显存起始地址
  1141. DISAGAIN:                                 ;
  1142.                 CALL DISY                 ;纵行显示程序调用
  1143.                 MOV A,@R0                 ;RAM中的值A
  1144.                 CALL DISX                 ;横行显示调整程序调用
  1145.                 CALL DISOUT               ;把A中的值送到数据线DAT上
  1146.                 INC R0                    ;RAM地址加1
  1147.                 MOV A,@R0                 ;
  1148.                 CALL DISX                 ;
  1149.                 CALL DISOUT               ;
  1150.                 INC R0                    ;
  1151.                 MOV A,YPOS1               ;
  1152.                 CALL DISOUT               ;
  1153.                 MOV A,YPOS2               ;
  1154.                 CALL DISOUT               ;
  1155.                 MOV A,YPOS3               ;
  1156.                 CALL DISOUT               ;
  1157.                 MOV A,YPOS4               ;
  1158.                 CALL DISOUT               ;
  1159.                 SETB ST                   ;
  1160.                 CLR ST                    ;
  1161.                 JB YPOS1.7,DISEND         ;判断整个显存内容是否已经显示完成
  1162.                 AJMP DISAGAIN             ;
  1163. DISEND:
  1164.                 MOV A,#00H                ;再次给送显示数据，消除屏幕最后一列过于亮的BUG
  1165.                 CALL DISOUT
  1166.                 MOV A,#00H
  1167.                 CALL DISOUT
  1168.                 MOV A,#80H
  1169.                 CALL DISOUT
  1170.                 MOV A,#00H
  1171.                 CALL DISOUT
  1172.                 MOV A,#00H
  1173.                 CALL DISOUT
  1174.                 MOV A,#000H
  1175.                 CALL DISOUT
  1176.                 SETB ST                   ;
  1177.                 CLR ST                    ;
  1178.                 MOV R0,#060H
  1179.                 RET
  1180. ;-------------------------------------------------------------------------------
  1181. ;子程序名称:DISY().
  1182. ;功能:纵行显示程序子程序（每次只能显示一纵行）
  1183. ;输入:21H,22H,23H,24H.
  1184. ;输出:21H,22H,23H,24H.
  1185. ;影响:21H,22H,23H,24H，,A.
  1186. ;-------------------------------------------------------------------------------
  1187. DISY:
  1188.                 MOV A,YPOS1               ;
  1189.                 RLC A                     ;把21H大高位'1'给'C'
  1190.                 MOV A,YPOS4               ;
  1191.                 RLC A                     ;把上面从21H中取出的高位（C）给24H的首位
  1192.                 MOV YPOS4,A               ;
  1193.                 MOV A,YPOS3               ;
  1194.                 RLC A                     ;
  1195.                 MOV YPOS3,A               ;
  1196.                 MOV A,YPOS2               ;
  1197.                 RLC A                     ;
  1198.                 MOV YPOS2,A               ;
  1199.                 MOV A,YPOS1               ;
  1200.                 RLC A                     ;
  1201.                 MOV YPOS1,A               ;首次运行本子程序后个寄存器的值为:21H（00000000B），22H（00000000B），23H（00000000B），24H（00000001B）
  1202.                 RET
  1203. ;-------------------------------------------------------------------------------
  1204. ;子程序名称:DISX(A).
  1205. ;功能:横行显示调整程序（电路设计时为了方便，用程序调整锁存器引脚对应的横行）
  1206. ;输入:A.
  1207. ;输出:A.
  1208. ;影响:20H（可位寻址去第一个寄存器），A.
  1209. ;-------------------------------------------------------------------------------
  1210. DISX:
  1211.                 RLC A
  1212.                 MOV 04H,C
  1213.                 RLC A
  1214.                 MOV 05H,C
  1215.                 RLC A
  1216.                 MOV 03H,C
  1217.                 RLC A
  1218.                 MOV 00H,C
  1219.                 RLC A
  1220.                 MOV 02H,C
  1221.                 RLC A
  1222.                 MOV 01H,C
  1223.                 RLC A
  1224.                 MOV 06H,C
  1225.                 RLC A
  1226.                 MOV 07H,C
  1227.                 MOV A,XPOS
  1228.                 RET
  1229. ;-------------------------------------------------------------------------------
  1230. ;子程序名称:DISOUT().
  1231. ;功能:把A中的值送到数据线DAT上
  1232. ;输入:A.
  1233. ;输出:无.
  1234. ;影响:A，25H.
  1235. ;-------------------------------------------------------------------------------
  1236. DISOUT:
  1237.                 CLR SH
  1238.                 MOV LP8,#08H
  1239. DISOUT1:
  1240.                 RLC A
  1241.                 MOV DAT,C
  1242.                 SETB SH
  1243.                 CLR SH
  1244.                 DJNZ LP8,DISOUT1
  1245.                 RET
  1246. ;-------------------------------------------------------------------------------
  1247. ;子程序名称:TIME0().
  1248. ;功能:定时器0中断程序
  1249. ;输入:.
  1250. ;输出:无.
  1251. ;影响:.
  1252. ;-------------------------------------------------------------------------------
  1253. TIME0:
  1254.                 PUSH PSW
  1255.                 PUSH A
  1256.                 MOV TH0,#03CH
  1257.                 MOV TL0,#0B0H
  1258.                 INC R4
  1259.                 CJNE R4,#14H,TIME01
  1260.                 MOV R4,#00H
  1261.                 INC SEC
  1262.                 MOV A,SEC
  1263.                 DA A
  1264.                 MOV SEC,A
  1265. TIME01:
  1266.                 POP A
  1267.                 POP PSW
  1268.                 RETI
  1269. ;-------------------------------------------------------------------------------
  1270. ;###############################################################################
  1271. ;##################################数据表格#####################################
  1272. ;###############################################################################
  1273. ;-------------------------------------------------------------------------------
  1274. ;画面一
  1275. ;-------------------------------------------------------------------------------
  1276. ;画面一中的时间变量
  1277. TAB11_0:
  1278. DB  03FH,0FCH,03FH,0FCH,030H,00CH,030H,00CH,03FH,0FCH,03FH,0FCH,0BBH;0
  1279. TAB11_1:
  1280. DB  000H,000H,000H,000H,000H,000H,000H,000H,03FH,0FCH,03FH,0FCH,0BBH;1
  1281. TAB11_2:
  1282. DB  031H,0FCH,031H,0FCH,031H,08CH,031H,08CH,03FH,08CH,03FH,08CH,0BBH;2
  1283. TAB11_3:
  1284. DB  031H,08CH,031H,08CH,031H,08CH,031H,08CH,03FH,0FCH,03FH,0FCH,0BBH;3
  1285. TAB11_4:
  1286. DB  03FH,080H,03FH,080H,001H,080H,001H,080H,03FH,0FCH,03FH,0FCH,0BBH;4
  1287. TAB11_5:
  1288. DB  03FH,08CH,03FH,08CH,031H,08CH,031H,08CH,031H,0FCH,031H,0FCH,0BBH;5
  1289. TAB11_6:
  1290. DB  03FH,0FCH,03FH,0FCH,031H,08CH,031H,08CH,031H,0FCH,031H,0FCH,0BBH;6
  1291. TAB11_7:
  1292. DB  030H,000H,030H,000H,030H,000H,030H,000H,03FH,0FCH,03FH,0FCH,0BBH;7
  1293. TAB11_8:
  1294. DB  03FH,0FCH,03FH,0FCH,031H,08CH,031H,08CH,03FH,0FCH,03FH,0FCH,0BBH;8
  1295. TAB11_9:
  1296. DB  03FH,08CH,03FH,08CH,031H,08CH,031H,08CH,03FH,0FCH,03FH,0FCH,0BBH;9
  1297. ;-------------------------------------------------------------------------------
  1298. ;画面二
  1299. ;-------------------------------------------------------------------------------
  1300. ;画面二中的时间变量1及画面三中的温度变量数字
  1301. TAB21_0:
  1302. DB  000H,07FH,000H,041H,000H,041H,000H,07FH,0BBH;0
  1303. TAB21_1:
  1304. DB  000H,000H,000H,000H,000H,000H,000H,07FH,0BBH;1
  1305. TAB21_2:
  1306. DB  000H,04FH,000H,049H,000H,049H,000H,079H,0BBH;2
  1307. TAB21_3:
  1308. DB  000H,049H,000H,049H,000H,049H,000H,07FH,0BBH;3
  1309. TAB21_4:
  1310. DB  000H,078H,000H,008H,000H,008H,000H,07FH,0BBH;4
  1311. TAB21_5:
  1312. DB  000H,079H,000H,049H,000H,049H,000H,04FH,0BBH;5
  1313. TAB21_6:
  1314. DB  000H,07FH,000H,049H,000H,049H,000H,04FH,0BBH;6
  1315. TAB21_7:
  1316. DB  000H,040H,000H,040H,000H,040H,000H,07FH,0BBH;7
  1317. TAB21_8:
  1318. DB  000H,07FH,000H,049H,000H,049H,000H,07FH,0BBH;8
  1319. TAB21_9:
  1320. DB  000H,079H,000H,049H,000H,049H,000H,07FH,0BBH;9
  1321. ;-------------------------------------------------------------------------------
  1322. ;画面二中的时间变量2
  1323. TAB21_0_:
  1324. DB  000H,01FH,000H,011H,000H,01FH,0BBH;0
  1325. TAB21_1_:
  1326. DB  000H,000H,000H,000H,000H,01FH,0BBH;1
  1327. TAB21_2_:
  1328. DB  000H,017H,000H,015H,000H,01DH,0BBH;2
  1329. TAB21_3_:
  1330. DB  000H,015H,000H,015H,000H,01FH,0BBH;3
  1331. TAB21_4_:
  1332. DB  000H,01CH,000H,004H,000H,01FH,0BBH;4
  1333. TAB21_5_:
  1334. DB  000H,01DH,000H,015H,000H,017H,0BBH;5
  1335. TAB21_6_:
  1336. DB  000H,01FH,000H,015H,000H,017H,0BBH;6
  1337. TAB21_7_:
  1338. DB  000H,010H,000H,010H,000H,01FH,0BBH;7
  1339. TAB21_8_:
  1340. DB  000H,01FH,000H,015H,000H,01FH,0BBH;8
  1341. TAB21_9_:
  1342. DB  000H,01DH,000H,015H,000H,01FH,0BBH;9
  1343. ;-------------------------------------------------------------------------------
  1344. ;画面二中移动字幕
  1345. TAB22_:
  1346. DB  063H,000H,085H,000H,089H,000H,091H,000H,061H,000H,000H,000H
  1347. DB  07EH,000H,081H,000H,081H,000H,081H,000H,07EH,000H,000H,000H;20
  1348. DB  0EEH
  1349. DB  000H,000H,010H,000H,010H,000H,010H,000H,010H,000H,010H
  1350. DB  000H,000H,000H                                        ;-
  1351. DB  0EEH
  1352. DB  000H,000H,010H,000H,010H,000H,010H,000H,010H,000H,010H
  1353. DB  000H,000H,000H                                        ;-
  1354. DB  0EEH
  1355. DB  000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H
  1356. DB  000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H
  1357. DB  000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,0EEH;______
  1358. ;-------------------------------------------------------------------------------
  1359. ;画面二中的移动数字变量
  1360. TAB22_0:
  1361. DB  07EH,000H,081H,000H,081H,000H,081H,000H,07EH,000H,000H,000H,0BBH;0
  1362. TAB22_1:
  1363. DB  000H,000H,041H,000H,0FFH,000H,001H,000H,000H,000H,000H,000H,0BBH;1
  1364. TAB22_2:
  1365. DB  063H,000H,085H,000H,089H,000H,091H,000H,061H,000H,000H,000H,0BBH;2
  1366. TAB22_3:
  1367. DB  042H,000H,081H,000H,091H,000H,091H,000H,06EH,000H,000H,000H,0BBH;3
  1368. TAB22_4:
  1369. DB  000H,000H,034H,000H,044H,000H,0FFH,000H,004H,000H,000H,000H,0BBH;4
  1370. TAB22_5:
  1371. DB  0F2H,000H,091H,000H,091H,000H,091H,000H,08EH,000H,000H,000H,0BBH;5
  1372. TAB22_6:
  1373. DB  07EH,000H,091H,000H,091H,000H,0D1H,000H,00EH,000H,000H,000H,0BBH;6
  1374. TAB22_7:
  1375. DB  080H,000H,080H,000H,08FH,000H,0B0H,000H,0C0H,000H,000H,000H,0BBH;7
  1376. TAB22_8:
  1377. DB  076H,000H,089H,000H,089H,000H,089H,000H,076H,000H,000H,000H,0BBH;8
  1378. TAB22_9:
  1379. DB  070H,000H,08BH,000H,089H,000H,089H,000H,07EH,000H,000H,000H,0BBH;9
  1380. ;-------------------------------------------------------------------------------
  1381. ;画面二中的星期变量
  1382. TAB22_W1:
  1383. DB  000H,000H,000H,000H,000H,000H,020H,080H,07FH,080H,000H,080H,000H,000H,000H,000H,0BBH;1
  1384. TAB22_W2:
  1385. DB  000H,000H,000H,000H,021H,080H,042H,080H,044H,080H,048H,080H,030H,080H,000H,000H,0BBH;2
  1386. TAB22_W3:
  1387. DB  000H,000H,000H,000H,040H,080H,048H,080H,048H,080H,048H,080H,037H,000H,000H,000H,0BBH;3
  1388. TAB22_W4:
  1389. DB  000H,000H,000H,000H,006H,000H,01AH,000H,022H,000H,07FH,080H,002H,000H,000H,000H,0BBH;4
  1390. TAB22_W5:
  1391. DB  000H,000H,000H,000H,078H,080H,048H,080H,048H,080H,048H,080H,04FH,080H,000H,000H,0BBH;5
  1392. TAB22_W6:
  1393. DB  000H,000H,000H,000H,07FH,080H,048H,080H,048H,080H,048H,080H,06FH,080H,000H,000H,0BBH;6
  1394. TAB22_W7:
  1395. DB  000H,000H,000H,000H,07FH,080H,048H,080H,048H,080H,048H,080H,07FH,080H,000H,000H,0BBH;日
  1396. ;-------------------------------------------------------------------------------
  1397. ;画面三
  1398. ;-------------------------------------------------------------------------------
  1399. ;画面三中的时间变量
  1400. TAB31_0:
  1401. DB  07FH,000H,041H,000H,041H,000H,07FH,000H,0BBH;0
  1402. TAB31_1:
  1403. DB  000H,000H,000H,000H,000H,000H,07FH,000H 0BBH;1
  1404. TAB31_2:
  1405. DB  04FH,000H,049H,000H,049H,000H,079H,000H,0BBH;2
  1406. TAB31_3:
  1407. DB  049H,000H,049H,000H,049H,000H,07FH,000H 0BBH;3
  1408. TAB31_4:
  1409. DB  078H,000H,008H,000H,008H,000H,07FH,000H,0BBH;4
  1410. TAB31_5:
  1411. DB  079H,000H,049H,000H,049H,000H,04FH,000H 0BBH;5
  1412. TAB31_6:
  1413. DB  07FH,000H,049H,000H,049H,000H,04FH,000H,0BBH;6
  1414. TAB31_7:
  1415. DB  040H,000H,040H,000H,040H,000H,07FH,000H 0BBH;7
  1416. TAB31_8:
  1417. DB  07FH,000H,049H,000H,049H,000H,07FH,000H,0BBH;8
  1418. TAB31_9:
  1419. DB  079H,000H,049H,000H,049H,000H,07FH,000H,0BBH;9
  1420. ;-------------------------------------------------------------------------------
  1421. ;画面三中的温度符号
  1422. TAB32_C:
  1423. DB  000H,000H,000H,060H,000H,01CH,000H,022H,000H
  1424. DB  041H,000H,041H,000H,022H,000H,000H,000H,000H;C
  1425. DB  0BBH
  1426. ;-------------------------------------------------------------------------------
  1427. ;画面四
  1428. ;-------------------------------------------------------------------------------
  1429. ;画面四中的时间
  1430. TAB41_0:
  1431. DB  0F8H,000H,088H,000H,0F8H,000H,0BBH;0
  1432. TAB41_1:
  1433. DB  000H,000H,000H,000H,0F8H,000H,0BBH;1
  1434. TAB41_2:
  1435. DB  0B8H,000H,0A8H,000H,0E8H,000H,0BBH;2
  1436. TAB41_3:
  1437. DB  0A8H,000H,0A8H,000H,0F8H,000H,0BBH;3
  1438. TAB41_4:
  1439. DB  0E0H,000H,020H,000H,0F8H,000H,0BBH;4
  1440. TAB41_5:
  1441. DB  0E8H,000H,0A8H,000H,0B8H,000H,0BBH;5
  1442. TAB41_6:
  1443. DB  0F8H,000H,0A8H,000H,0B8H,000H,0BBH;6
  1444. TAB41_7:
  1445. DB  080H,000H,080H,000H,0F8H,000H,0BBH;7
  1446. TAB41_8:
  1447. DB  0F8H,000H,0A8H,000H,0F8H,000H,0BBH;8
  1448. TAB41_9:
  1449. DB  0E8H,000H,0A8H,000H,0F8H,000H,0BBH;9
  1450. ;-------------------------------------------------------------------------------
  1451. ;画面四中的移动字幕
  1452. TAB42_:
  1453. DB  000H,040H,000H,040H,000H,090H,001H,010H,002H,090H,004H,071H,002H,016H,001H,018H
  1454. DB  000H,080H,000H,040H,000H,040H,000H,000H,000H,041H,004H,041H,004H,042H,004H,044H
  1455. DB  004H,058H,007H,0E0H,004H,058H,004H,044H,004H,042H,004H,041H,000H,041H,000H,000H
  1456. DB  000H,011H,000H,012H,000H,01CH,007H,0D4H,005H,052H,005H,05FH,005H,055H,005H,055H
  1457. DB  007H,0D5H,000H,015H,000H,011H,000H,000H,000H,0C6H,001H,00AH,001H,012H,001H,022H
  1458. DB  000H,0C2H,000H,000H,000H,0FCH,001H,002H,001H,002H,001H,002H,000H,0FCH,000H,000H;今天是20
  1459. DB  0EEH
  1460. DB  000H,088H,001H,008H,006H,078H,002H,048H,002H,048H,003H,0FFH,002H,048H,002H,048H
  1461. DB  002H,048H,002H,008H,000H,000H,000H,000H                                        ;年
  1462. DB  0EEH
  1463. DB  000H,000H,000H,001H,000H,002H,007H,0FCH,004H,090H,004H,090H,004H,091H,004H,091H
  1464. DB  007H,0FFH,000H,000H,000H,000H,000H,000H                                        ;月
  1465. DB  0EEH
  1466. DB  000H,000H,000H,000H,007H,0FFH,004H,042H,004H,042H,004H,042H,004H,042H,004H,042H
  1467. DB  004H,042H,007H,0FFH,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H
  1468. DB  000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H
  1469. DB  000H,005H,000H,009H,007H,0F5H,005H,055H,005H,055H,005H,07FH,005H,055H,005H,055H
  1470. DB  005H,055H,007H,0D5H,000H,001H,000H,000H,002H,009H,007H,0FAH,002H,0ACH,002H,0A8H
  1471. DB  007H,0FCH,002H,00AH,000H,001H,007H,0FEH,004H,090H,004H,091H,007H,0FFH,000H,000H
  1472. DB  000H,000H                                                                      ;日 星期
  1473. DB  0EEH
  1474. DB  000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H
  1475. DB  000H,000H,000H,000H,000H,000H,000H,000H,004H,08FH,002H,070H,000H,001H,000H,01FH
  1476. DB  007H,0D1H,005H,05FH,005H,051H,005H,05FH,005H,051H,007H,0DFH,000H,001H,000H,000H
  1477. DB  000H,003H,003H,0FCH,002H,081H,002H,089H,003H,0E9H,002H,0AEH,006H,0AAH,002H,0AEH
  1478. DB  003H,0E9H,002H,089H,002H,081H,000H,000H                                        ;  温度
  1479. DB  0EEH
  1480. DB  000H,000H,007H,000H,005H,000H,007H,000H,000H,000H,001H,0FCH,002H,002H,002H,002H
  1481. DB  002H,002H,002H,002H,001H,084H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H
  1482. DB  000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H
  1483. DB  000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H,000H;C
  1484. DB  0EEH
  1485. ;-------------------------------------------------------------------------------
  1486. ;画面四中的移动数字变量
  1487. TAB42_0:
  1488. DB  000H,0FCH,001H,002H,001H,002H,001H,002H,000H,0FCH,000H,000H,0BBH;0
  1489. TAB42_1:
  1490. DB  000H,000H,000H,082H,001H,0FEH,000H,002H,000H,000H,000H,000H,0BBH;1
  1491. TAB42_2:
  1492. DB  000H,0C6H,001H,00AH,001H,012H,001H,022H,000H,0C2H,000H,000H,0BBH;2
  1493. TAB42_3:
  1494. DB  000H,084H,001H,002H,001H,022H,001H,022H,000H,0DCH,000H,000H,0BBH;3
  1495. TAB42_4:
  1496. DB  000H,010H,000H,068H,000H,088H,001H,0FEH,000H,00AH,000H,000H,0BBH;4
  1497. TAB42_5:
  1498. DB  001H,0E4H,001H,022H,001H,022H,001H,022H,001H,01CH,000H,000H,0BBH;5
  1499. TAB42_6:
  1500. DB  000H,0FCH,001H,022H,001H,022H,001H,0A2H,000H,01CH,000H,000H,0BBH;6
  1501. TAB42_7:
  1502. DB  001H,080H,001H,000H,001H,03EH,001H,0C0H,001H,000H,000H,000H,0BBH;7
  1503. TAB42_8:
  1504. DB  000H,0DCH,001H,022H,001H,022H,001H,022H,000H,0DCH,000H,000H,0BBH;8
  1505. TAB42_9:
  1506. DB  000H,0E0H,001H,016H,001H,012H,001H,012H,000H,0FCH,000H,000H,0BBH;9
  1507. ;-------------------------------------------------------------------------------
  1508. ;画面四中的星期变量
  1509. TAB42_W0:
  1510. DB  0BBH
  1511. TAB42_W1:
  1512. DB  000H,020H,000H,020H,000H,020H,000H,020H,000H,020H,000H,020H,000H,020H,000H,020H
  1513. DB  000H,020H,000H,060H,000H,020H,000H,000H                                        ;一
  1514. DB  0BBH
  1515. TAB42_W2:
  1516. DB  000H,002H,001H,002H,001H,002H,001H,002H,001H,002H,001H,002H,001H,002H,001H,002H
  1517. DB  003H,002H,001H,002H,000H,002H,000H,000H                                        ;二
  1518. DB  0BBH
  1519. TAB42_W3:
  1520. DB  000H,001H,002H,001H,002H,001H,002H,021H,002H,021H,002H,021H,002H,021H,002H,021H
  1521. DB  006H,021H,002H,003H,000H,001H,000H,000H                                        ;三
  1522. DB  0BBH
  1523. TAB42_W4:
  1524. DB  000H,000H,007H,0FFH,004H,00AH,004H,012H,007H,0E2H,004H,002H,004H,002H,007H,0FAH
  1525. DB  004H,00AH,004H,00AH,007H,0FFH,000H,000H                                        ;四
  1526. DB  0BBH
  1527. TAB42_W5:
  1528. DB  000H,001H,004H,041H,004H,041H,004H,04FH,007H,0F1H,004H,041H,004H,041H,004H,041H
  1529. DB  004H,07FH,004H,001H,000H,001H,000H,000H                                        ;五
  1530. DB  0BBH
  1531. TAB42_W6:
  1532. DB  000H,081H,000H,082H,000H,08CH,000H,0B0H,004H,080H,003H,080H,000H,0A0H,000H,090H
  1533. DB  000H,08CH,000H,083H,000H,080H,000H,000H                                        ;六
  1534. DB  0BBH
  1535. TAB42_W7:
  1536. DB  000H,000H,000H,000H,007H,0FFH,004H,042H,004H,042H,004H,042H,004H,042H,004H,042H
  1537. DB  004H,042H,007H,0FFH,000H,000H,000H,000H                                        ;日
  1538. DB  0BBH
  1539.
  1540.                 END





 (原文件名:IMG_0723.jpg)
引用图片






 (原文件名:IMG_0724.jpg)
引用图片






 (原文件名:IMG_0725.jpg)
引用图片






 (原文件名:IMG_0726.jpg)
引用图片






 (原文件名:IMG_0727.jpg)
引用图片






 (原文件名:IMG_0729.jpg)
引用图片






 (原文件名:IMG_0730.jpg)
引用图片






 (原文件名:IMG_0732.jpg)
引用图片






 (原文件名:IMG_0733.jpg)
引用图片






 (原文件名:IMG_0734.jpg)
引用图片






 (原文件名:IMG_0736.jpg)
引用图片






 (原文件名:IMG_0737.jpg)
引用图片






 (原文件名:IMG_0738.jpg)
引用图片






 (原文件名:IMG_0739.jpg)
引用图片






 (原文件名:IMG_0740.jpg)
引用图片






 (原文件名:IMG_0741.jpg)
引用图片






 (原文件名:IMG_0742.jpg)
引用图片






 (原文件名:IMG_0743.jpg)
引用图片






 (原文件名:IMG_0744.jpg)
引用图片






 (原文件名:IMG_0745.jpg)
引用图片






 (原文件名:IMG_0746.jpg)
引用图片






 (原文件名:IMG_0747.jpg)
引用图片






 (原文件名:IMG_0748.jpg)
引用图片






 (原文件名:IMG_0749.jpg)
引用图片






 (原文件名:IMG_0751.jpg)
引用图片






 (原文件名:IMG_0752.jpg)
引用图片






 (原文件名:IMG_0753.jpg)
引用图片






 (原文件名:IMG_0754.jpg)
引用图片






 (原文件名:IMG_0755.jpg)
引用图片






 (原文件名:IMG_0756.jpg)
引用图片






 (原文件名:IMG_0757.jpg)
引用图片






 (原文件名:IMG_0758.jpg)
引用图片






 (原文件名:IMG_0759.jpg)
引用图片






 (原文件名:IMG_0760.jpg)
引用图片






 (原文件名:IMG_0762.jpg)
引用图片






 (原文件名:IMG_0763.jpg)
引用图片






 (原文件名:IMG_0764.jpg)
引用图片






 (原文件名:IMG_0765.jpg)
引用图片






 (原文件名:IMG_0766.jpg)
引用图片

相关文章:


最新开源项目


  查看更多...

本站相关产品   淘宝网店


  查看更多...



本站程序由百合电子工作室开发和维护
Copyright @ baihe electric studio
渝ICP备09006681号-4
